A Premier B2B Part Search
WURTH ELEKTRONIK 158301227 PLCC LED

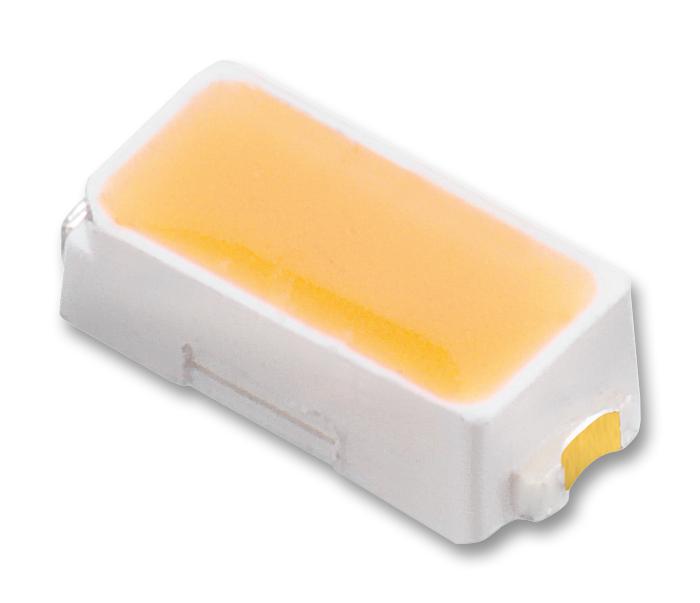

This white top view PLCC LED by Wurth Elektronik features InGaN chip technology emitting Suntise color, with a viewing angle of 120°. It operates reliably within -40°C to +85°C, with a forward voltage of 3.0–3.5 V at 20 mA and luminous flux ranging from 6.0 to 7.0 lm. The component includes a recommended land pattern of 12.055 mm, and complies with RoHS and REACH standards. Suitable for various electronic applications requiring high brightness and reliable LED components.
WURTH ELEKTRONIK 158301227 PLCC LED Specifications:
- Chip Technology: InGaN
- Emitting Color: Suntise
- Lens Type: Top LED
- Viewing Angle: 120°
- Forward Voltage: 3.0–3.5 V at 20 mA
- Luminous Flux: 6.0–7.0 lm at 20 mA
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Recommended land pattern: 12.055 mm
- Size: 3014
- RoHS & REACH compliant
- Maximum Peak Forward Current: 40 mA
- Power Dissipation: 105 mW
- Reverse Voltage: 5 V
- Peak Forward Current @tkt: 40 mA
- Absolute thermal resistance junction to solder: 38 KW
- Junction temperature: 130°C
Buy the Wurth Elektronik 158301227 – Reliable LED for Industrial Applications
Discover the high-quality white top view PLCC LED with InGaN technology from Wurth Elektronik. Perfect for industrial and electronic applications, it offers a bright Suntise color with a wide viewing angle of 120°. Operating reliably from -40°C to +85°C, it ensures consistent performance with a forward voltage of 3.0–3.5 V at 20 mA and luminous flux of 6 to 7 lumens. Suitable land pattern, RoHS & REACH compliant, this LED guarantees durability and high efficiency for your designs. Order online today for fast delivery and reliable performance in your electronic assemblies.
Buy Wurth Elektronik 158301227 white top view PLCC LED now and experience high brightness and durable performance in your electronic projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 158301227?
You can click on the BUY or RFQ button to purchase 158301227 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 158301227?
You can download the 158301227 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 158301227?
WURTH ELEKTRONIK
