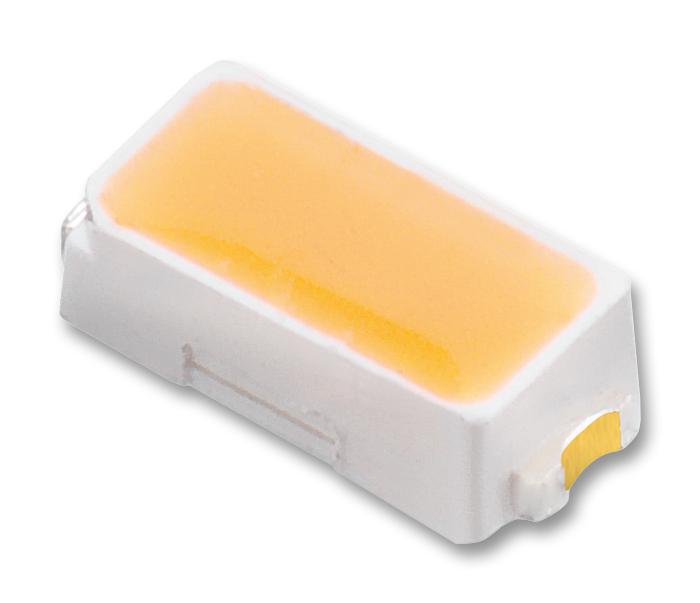

WURTH ELEKTRONIK 158301230A Surface Mount LED
This white SMT optoelectronic component features a warm white light with a chip technology based on AllnGaN. It has a typical luminous flux of 20-26 Im at 65mA and operates within -40°C to +85°C. The lens is waterclear, and the component is RoHS, REACh, and halogen-free compliant. Designed for general electronic equipment, it offers a peak forward current of 200 mA, peak thermal resistance of 45 KW junction-to-solder, and an optical emission angle of 120°. Storage conditions and handling precautions are specified to ensure reliability and performance.
WURTH ELEKTRONIK 158301230A Surface Mount LED Specifications:
- Power Dissipation: 500 mW
- Peak Forward Current: 200 mA @ 1 kHz duty cycle
- Continuous Forward Current: 150 mA
- ESD Threshold: ≥ 2000 V
- Junction to Solder Point Thermal Resistance: 45 KW
- Junction Temperature: 120°C
- Optical Properties: Emitting Color - Warm White, Chip Technology - AllnGaN, Viewing Angle - 120°, Waterclear lens
- Storage Conditions: < 40°C, < 90% RH, Storage Time < 12 months
- Operating Temperature: -40°C to +85°C
- Moisture Sensitivity Level: 3
- Chromaticity Coordinates: X - 0.4338, Y - 0.403 at 65mA
- Luminous Flux: 20-26 Im at 65mA
- Forward Voltage: 2.8-3.0 V at 65mA
- Correlated Color Temperature: 3000K
- CRI: 80-85
- Viewing Angle: 120°
- Certification: RoHS, REACh, Halogen Free
- Spectral Peak Wavelength: 650-700 nm
- Reflow Profile: Max. 260°C peak, preheat 150-200°C, duration 60-120 sec, ramp rate max. 3°C/sec, 2 reflow cycles allowed
- Storage Conditions (original packaging): DIN EN 61760-2, IPC/JEDEC-J-STD-033
Buy the WURTH Series SMT LED: 158301230A
Purchase the WURTH SMT LED 158301230A online now and enhance your electronic devices with reliable, efficient, and high-quality lighting. Crafted with advanced AllnGaN chip technology, this warm white LED offers excellent brightness, a broad viewing angle of 120°, and a compact waterclear lens suitable for various applications. It meets international RoHS, REACh, and halogen-free standards, ensuring safety and sustainability. Whether for mass production or custom projects, ordering online guarantees fast delivery and genuine products, helping you meet your project deadlines with confidence.
Order your WURTH Series SMT LED 158301230A today and give your electronic projects the dependable quality they deserve with high-performance illumination.
