WURTH ELEKTRONIK 62200421821 Socket Header
The WR-PHD THT Straight Dual Socket is a high-quality, 1.27 mm pitch header designed for reliable connections in electronic assemblies. Made from copper alloy with gold plating, it features a UL94 V-0 rated insulator in black and offers durability up to 500 mating cycles. Operating within -40°C to +105°C, it supports a rated current of 1 A and withstands voltages up to 500 V AC. Ideal for precise electronic applications, it ensures stable electrical contact and robust mechanical performance, suitable for general electronics and signal connection needs.
WURTH ELEKTRONIK 62200421821 Socket Header Specifications:
- Pin to Pin (Middle): 1.27 mm
- Number of Pins: 4
- Length L: 2.54 mm
- Pitch P: 1.27 mm
- Material: Copper Alloy
- Contact Plating: Gold
- Insulator Material: PAST
- Insulator Flammability Rating: UL94 V-0
- Insulator Color: Black
- Rated Current: 1 A
- Working Voltage: 100 VAC
- Withstanding Voltage: 500 V (AC) for 1 min
- Contact Resistance: 20 mΩ max
- Insulation Resistance: 1000 MΩ min
- Durability: 500 mating cycles
- Operating Temperature: -40°C to +105°C
- RoHS & REACh compliant
- UL Approval: 323964

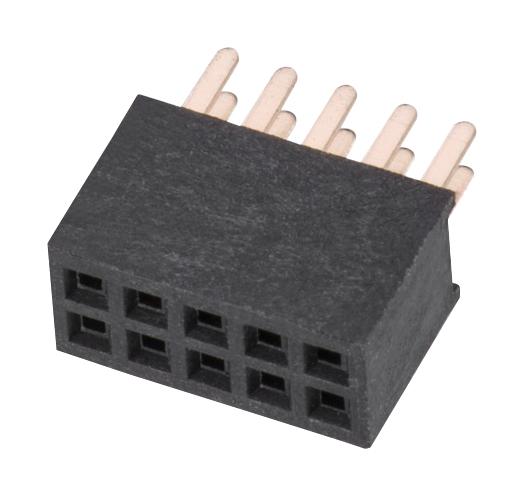

Buy the Buy Wurth Elektronik Dual Socket Part Number 62200421821 Online
Purchase the Wurth Elektronik WR-PHD THT Straight Dual Socket online for dependable electrical connections in your electronic assemblies. Featuring a 1.27 mm pitch, gold-plated copper contacts, and a durable UL94 V-0 insulator in black, this socket supports 500 mating cycles and operates reliably between -40°C and +105°C. Ideal for signal and power connections, it ensures stable contact resistance of 20 mΩ max and withstands voltages up to 500 V AC. Available now for fast, secure online ordering and project assembly.
Order your Wurth Elektronik WR-PHD THT Straight Dual Socket today and secure reliable, high-performance connections for your electronic projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 62200421821?
You can click on the BUY or RFQ button to purchase 62200421821 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 62200421821?
You can download the 62200421821 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 62200421821?
WURTH ELEKTRONIK
