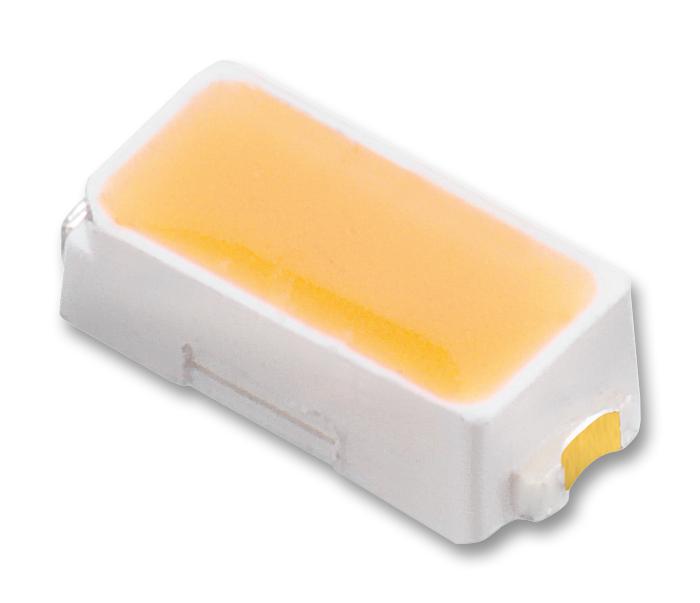

WURTH ELEKTRONIK 158301240A Moonlight LED
This high-performance optoelectronic component features a Moonlight emission color with a wavelength of approximately 650 nm and an allnGaN chip technology. Designed for general electronic equipment, it offers a luminous flux of 20 to 26 lumens at 65mA, with a forward voltage of 2.8 to 3.0 V. It can operate within a temperature range of -40°C to +85°C and has a peak forward current capacity of 200mA with a power dissipation of 500mW. Its robust design ensures reliability in various applications, with certification compliance including RoHS, REACH, and halogen-free standards.
WURTH ELEKTRONIK 158301240A Moonlight LED Specifications:
- Wavelength: approximately 650 nm
- Luminous Flux: 20 to 26 Im at 65mA
- Forward Voltage: 2.8 to 3.0 V at 65mA
- Color: Moonlight (blueish-white)
- Chip Technology: AllnGaN
- Peak Forward Current: 200 mA
- Power Dissipation: 500 mW
- Operating Temperature: -40°C to +85°C
- Storage Conditions: < 40°C, < 90% RH, Moisture Sensitivity Level 3
- Absolute Thermal Resistance: 45 KW junction to solder point
- Junction Temperature: 120°C
- Optical Lens: Waterclear
- Viewing Angle: 120°
- Certification: RoHS, REACH, Halogen Free (IEC 61249-2-21, JEDEC JS709B)
Buy the Wurth Series LED: Moonlight Emission 650nm: 158301240A
Discover the high-quality Moonlight LED with allnGaN technology, featuring a wavelength of 650 nm and luminous flux of up to 26 lumens. Designed for versatile applications, it operates efficiently within a temperature range of -40°C to +85°C and meets strict safety certifications including RoHS and REACH. Its waterclear lens provides wide viewing angles, and with a peak forward current of 200 mA, it ensures bright, consistent illumination. Purchase online now to enhance your electronic designs with this reliable, high-performance LED component tailored for various industrial and electronic uses.
Buy Wurth LED 158301240A now and experience unmatched reliability and performance for your electronics projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 158301240A?
You can click on the BUY or RFQ button to purchase 158301240A from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 158301240A?
You can download the 158301240A datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 158301240A?
WURTH ELEKTRONIK
