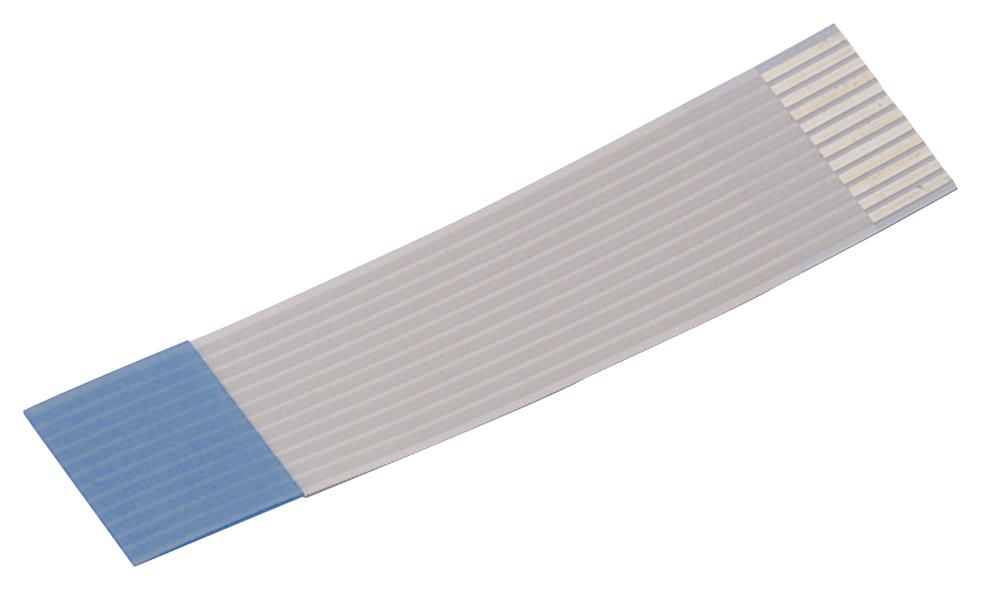

WURTH ELEKTRONIK 686710100001 Flexible Flat Cable
The WR-FFC Flat Flexible Cable by Wurth Elektronik features Type 2 with a 1.00 mm pitch, designed for reliable electrical connections in electronic equipment. Made with durable PET insulation and copper conductors, it provides excellent flexibility and resistance to moisture and heat. Suitable for various industrial and consumer applications, it ensures high durability with up to 20 mating cycles and complies with UL, EC, and REACH standards. Its compact design allows easy integration into compact electronic assemblies, making it a versatile choice for manufacturing and repair tasks.
WURTH ELEKTRONIK 686710100001 Flexible Flat Cable Specifications:
- Type: Flat Flexible Cable, Type 2
- Pitch: 1.00 mm
- Insulation Material: PET (White)
- Tape Material: PET (Blue)
- Conductor Material: Copper, Tin-plated
- Rated Current: 1 A
- Working Voltage: 60 V
- Insulation Resistance: 1000 MΩ at 500 V
- Withstanding Voltage: 500 V for 1 min
- Conductor Resistance: 1.09 Ω/m
- Operating Temperature: -30°C to +105°C
- Durability: Up to 20 mating cycles
- Certifications: UL, Rots, REACH compliant
- Moisture Resistance: 96 hours at 40°C, 95% RH
- Heat Resistance: 110°C for 96 hours
- Flammability: UL SUB.758 rating
Buy the Wurth Elektronik 686710100001 – Reliable Flat Flexible Cable for Industrial Applications
Order the reliable flat flexible cable from Wurth Elektronik online today and ensure robust, flexible connections in your electronic projects. With high durability, excellent insulation, and compliance with international safety standards, this cable is perfect for industrial, automotive, and consumer electronics. Its compact 1.00 mm pitch guarantees easy integration into tight spaces, providing long-lasting performance. Purchase now to benefit from fast shipping and expert support, ensuring your electronic systems are efficiently powered and connected with top-quality components.
Buy Wurth Elektronik 686710100001 now and experience unmatched reliability and high performance in your electronic assemblies.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 686710100001?
You can click on the BUY or RFQ button to purchase 686710100001 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 686710100001?
You can download the 686710100001 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 686710100001?
WURTH ELEKTRONIK
