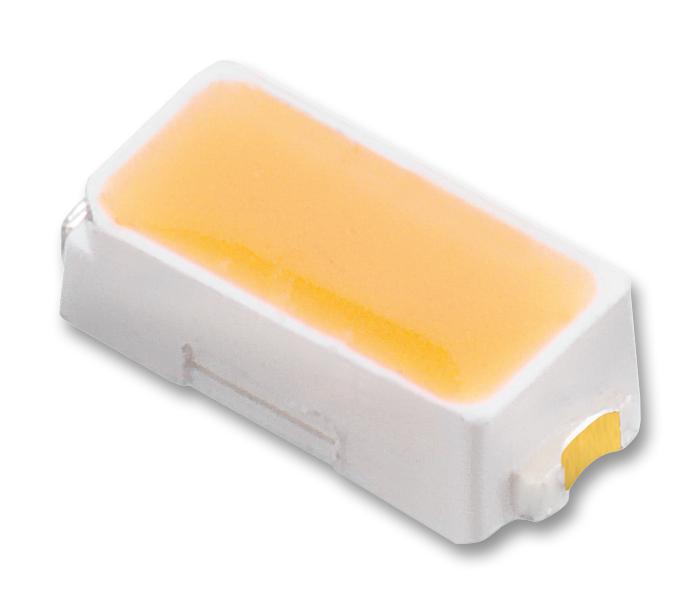

WURTH ELEKTRONIK 158301260 White LED
The WL-SWTP SMD White Top View PLCC LED is designed for general electronic equipment, featuring InGaN chip technology, cool white emission, and a top lens type. It operates within a temperature range of -40°C to +85°C, with a luminous flux of 8.0 lumens at 20 mA and a forward voltage of around 3.0 to 3.5 V. The device offers a viewing angle of 120°, chromaticity coordinates near x=0.3233, y=0.3327, and a correlated color temperature of approximately 6000 K. Suitable for various electronic applications, it ensures compliance with RoHS and REACH standards, and includes specifications for soldering, packaging, and safety. It’s ideal for use in indicator lights, display backlights, and other illumination needs, with rigorous test conditions ensuring durability and reliability.
WURTH ELEKTRONIK 158301260 White LED Specifications:
- Chip Technology: InGaN
- Emitting Color: Cool White
- Lens Type: Top LED
- Size: 3014 (modules), 3.20 mm x 1.60 mm
- Dimensions: 3.0 mm height, flat top view
- Forward Voltage: 3.0 V to 3.5 V at 20 mA
- Luminous Flux: 8.0 lumens at 20 mA
- Viewing Angle: 120°
- Chromaticity Coordinates (X, Y): 0.3233, 0.3327 at 20 mA
- Correlated Color Temperature: approx. 6000 K
- Peak Forward Current: 40 mA
- Continuous Forward Current: 30 mA
- Reverse Voltage: 5 V
- Operating Temperature Range: -40°C to +85°C
- Absolute Thermal Resistance Junction to Solder: 38 K/W
- Junction Temperature: 130°C
- Package: Tape and Reel, 2000 pcs Reel
- Soldering Profile: Max ramp-up 3°C/s, Max ramp-down 6°C/s, Peak temp 250°C
Buy the WURTH ELEKTRONIK Series WL-SWTP Cool White LED: 158301260
Order the WURTH ELEKTRONIK WL-SWTP White LED online today and enhance your electronic designs with high-quality, durable, and energy-efficient illumination. This top-view PLCC LED offers excellent brightness, thermal performance, and a wide viewing angle of 120°, making it suitable for indicator lights, display backlights, and various general electronic applications. With strict adherence to RoHS and REACH standards, it ensures safety and sustainability. Immediate online purchase guarantees fast delivery and reliable quality for all your electronic needs.
Buy WURTH ELEKTRONIK WL-SWTP LED now and experience unmatched reliability and performance in your electronic projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 158301260?
You can click on the BUY or RFQ button to purchase 158301260 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 158301260?
You can download the 158301260 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 158301260?
WURTH ELEKTRONIK
