WURTH ELEKTRONIK 158301227A High-brightness White LED
This high-brightness white LED features AllnGaN chip technology with Sunrise color emission and a waterclear lens. Designed for optical and electronic applications, it offers a luminous flux of 20-26 lumens at 65mA, a forward voltage of 3V, and a correlated color temperature of 2700K. It operates within -40°C to +85°C and features RoHS, REACH, and Halogen Free certifications. Its compact design makes it suitable for various illumination, indicator, and display applications, providing reliable performance in demanding environments.
WURTH ELEKTRONIK 158301227A High-brightness White LED Specifications:
- Chip Technology: AllnGaN
- Emission Color: Sunrise
- Lens Type: Waterclear
- Luminous Flux: 20-26 Im at 65mA
- Forward Voltage: 3 V at 65mA
- Color Temperature: 2700K
- Chromaticity Coordinates: X 0.4578, Y 0.4101 at 65 mA
- Viewing Angle: 120°
- Storage Conditions: < 40°C; < 90% RH
- Operating Temperature Range: -40°C to +85°C
- Moisture Sensitivity Level: 3
- Certifications: RoHS, REACH, Halogen Free (IEC 61249-2-21, JEDEC JS709B)
- Peak Forward Current: 200 mA
- Power Dissipation: 500 mW
- Thermal Resistance: Junction to Solder Point 45 K/W
- Junction Temperature: 120°C
- Soldering Profile: Preheat 150-200°C, Max 60-120s, Ramp-up 3°C/sec, Max Peak 260°C

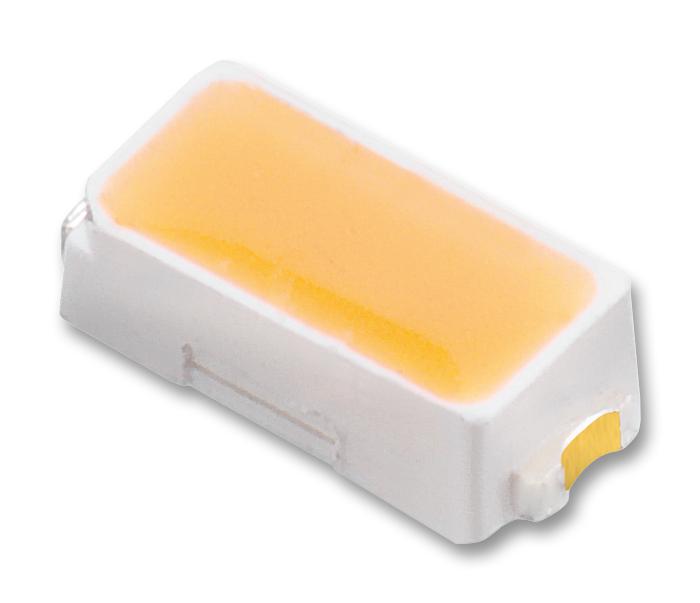

Buy the Buy WURTH ELEKTRONIK White LED Part Number 158301227A Online
Get your WURTH ELEKTRONIK white LED Part Number 158301227A today online and enjoy a high-quality component with Sunrise color emission, 20-26 lumens luminous flux, and a 2700K color temperature. Perfect for illumination and indicator applications, it operates reliably across -40°C to +85°C. Certified RoHS, REACH, and Halogen Free, this compact LED ensures energy efficiency and durability in demanding environments. Enhance your designs easily by purchasing online and benefiting from quick delivery and authentic quality standards.
Order your WURTH ELEKTRONIK Series158301227A high-brightness white LED today and enhance your electronic projects with reliable, energy-efficient illumination.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 158301227A?
You can click on the BUY or RFQ button to purchase 158301227A from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 158301227A?
You can download the 158301227A datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 158301227A?
WURTH ELEKTRONIK
