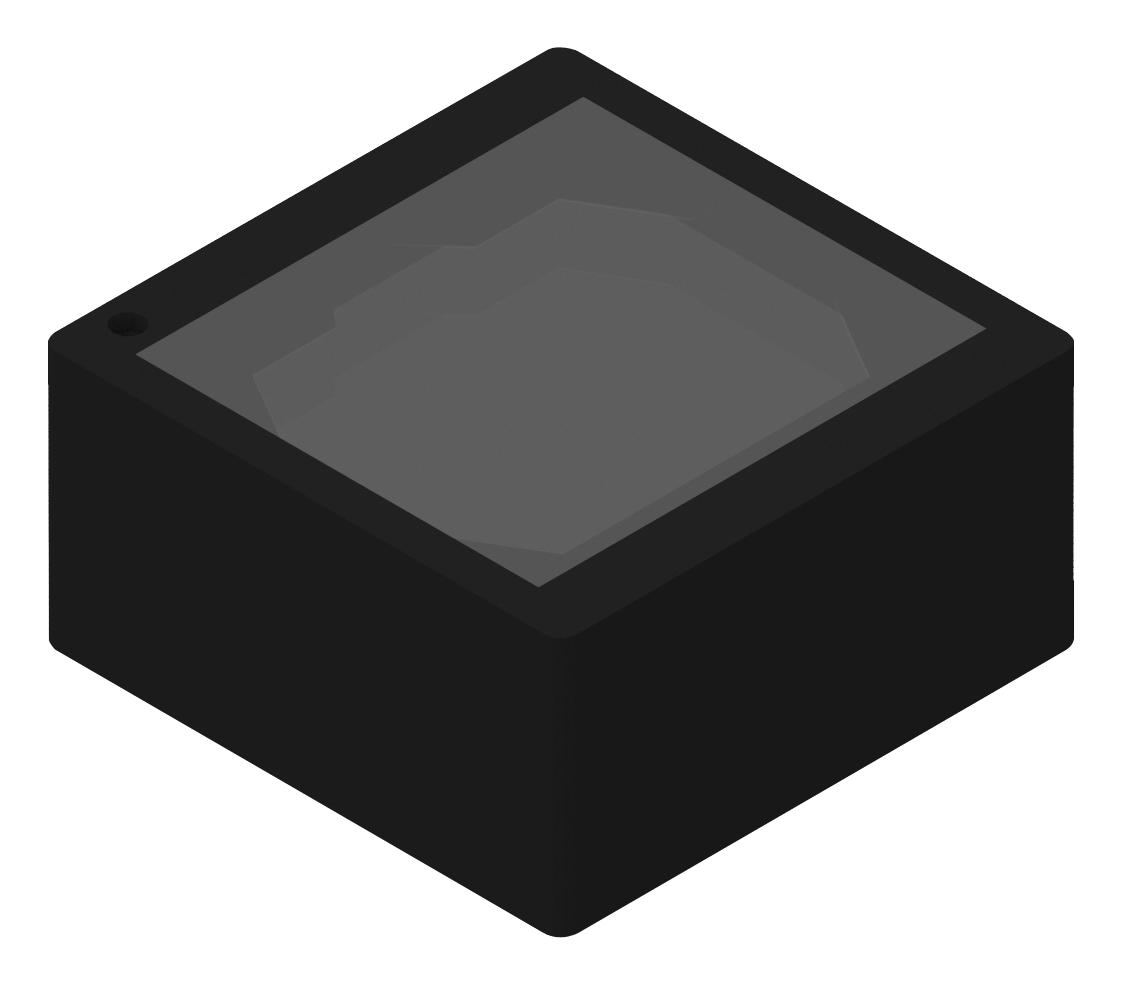

WURTH ELEKTRONIK 159353940A6300 Vertical Cavity Laser Diode
The Würth Elektronik 159353940A6300 is a vertical cavity surface emitting laser (VCSEL) diode designed for general electronic equipment. It emits infrared light with a peak wavelength of 940nm and a radiant flux ranging from 1600 to 1900mW. This VCSEL diode is characterized by its diffused lens type, black plastic housing, and a viewing angle of 60° in the X-axis and 45° in the Y-axis. It is suitable for applications such as optical communication, proximity sensing, and laser rangefinders, where precise and efficient light emission is required. The device operates within a temperature range of -20°C to +85°C and has a moisture sensitivity level (MSL) of 3.
WURTH ELEKTRONIK 159353940A6300 Vertical Cavity Laser Diode Specifications:
- Power Dissipation: 6600 mW
- Peak Forward Current: 5000 mA
- Continuous Forward Current: 3000 mA
- ESD Threshold (HBM): 1000 V
- Emitting Color: Infrared
- Lens Type: Diffused
- Plastic Housing Color: Black
- Scale: 7:1
- Anode Mark: Operating Temperature Range: -20 up to +85 °C
- Storage Conditions (in original packaging): < 40 °C ; < 90 % RH
- Storage Conditions (for single parts): -20 up to +85 °C
- Moisture Sensitivity Level (MSL): 3
- Peak Wavelength (λPeak): 930-950 nm
- Radiant Flux (Φe): 1600-1900 mW
- Forward Voltage (VF): 2-2.3 V
- Spectral Bandwidth (Δλ): 2 nm
- Slope Efficiency (SE): 0.6-1.1 W/A
- Energy Conversion Efficiency (ηEC): 31%
- Viewing Angle (X-Axis): 60°
- Viewing Angle (Y-Axis): 45°
- Threshold Current (ITh): 0.3-1.1 A
- RoHS Approval: Compliant [2011/65/EU&2015/863]
- REACh Approval: Conform or declared [(EC)1907/2006]
