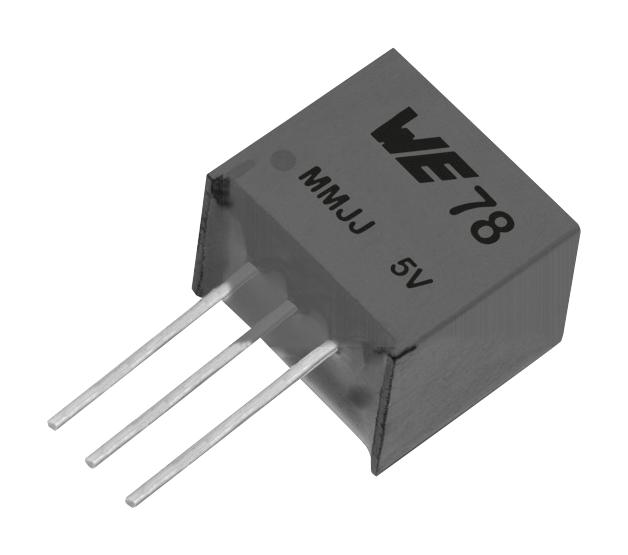

WURTH ELEKTRONIK 173010535 Fixed Step Down Power Module
The WURTH ELEKTRONIK FDSM series MagI[3] C Power Module is a fully integrated DC-DC power supply designed for efficient voltage conversion. It incorporates a switching regulator, inductor, and capacitors in a single package, simplifying design and reducing component count. The module offers a wide input voltage range (6V to 36V) and selectable output voltages (3.3V or 5V), making it suitable for various industrial applications such as point-of-load DC-DC conversions, microcontroller power supplies, and replacements for linear regulators. Its compact size, high efficiency, and pin compatibility with 78xx regulators contribute to faster time-to-market and reduced development costs.
WURTH ELEKTRONIK 173010535 Fixed Step Down Power Module Specifications:
- input_voltage_range: 6V to 36V
- output_voltage: 3.3V or 5V
- output_current: up to 1A
- peak_efficiency: up to 94%
- output_voltage_accuracy: ± 4% max
- switching_frequency: 520kHz
- ambient_temperature_range: 40°C to 85°C
- rohs_compliance: Compliant
- flammability_rating: UL 94 Class V0
- emissions_standard: EN55032 class B
- case_size: 10.4 x 11.6 x 8mm
- pin_compatibility: 78xx linear regulator series
- thermal_shutdown_temperature: 170°C
- case_to_ambient_thermal_resistance: 70 K/W
Buy the 173010535 WURTH ELEKTRONIK Fixed Step Down Power Module | myMectronic
Purchase the WURTH ELEKTRONIK 173010535 Fixed Step Down Power Module securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 173010535?
You can click on the BUY or RFQ button to purchase 173010535 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 173010535?
You can download the 173010535 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 173010535?
WURTH ELEKTRONIK
