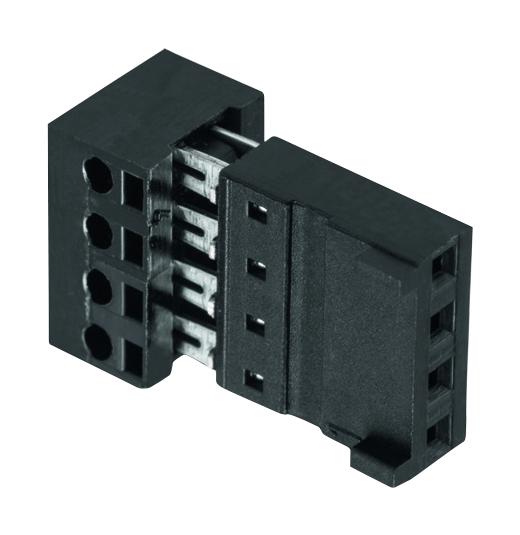

WURTH ELEKTRONIK 661002151922 Female Right Angled Receptacle
The WURTH ELEKTRONIK 661002151922 is a high-quality female right-angled receptacle specifically engineered for use with AWG#24-22 wires. Constructed with a PBT insulator and phosphor bronze metal, this connector offers excellent durability and performance. It is RoHS compliant, ensuring environmentally friendly operation. Suitable for a wide range of electronic applications, including industrial automation, consumer electronics, and telecommunications equipment, where reliable and secure connections are essential. Always consult Wurth Elektronik for applications requiring higher safety and reliability.
WURTH ELEKTRONIK 661002151922 Female Right Angled Receptacle Specifications:
- Material_Insulator: PBT
- Flammability_Rating: UL94V0
- Color: Black
- Metal: Phosphor Bronze
- Plating: Tin
- Quality_Class: 25 Mating Cycles
- Operating_Temperature: -40°C Up To +125°C
- Compliance: Lead Free and RoHS
- Current_Rating: 3 A
- Working_Voltage: 50 VAC
- Withstanding_Voltage: 500 VAC/Min
- Insulation_Resistance: >1000 MΩ
- Contact_Resistance: 20 mΩ Max
- Stranded_Wire: 24-22 AWG
- Packaging: 2.54 Tubes
- A: ±0.2
- B: ±0.1
- A_Dimension: (nb. pin-1) x pitch
- B_Dimension: (nb. pin x pitch)
- General_Tolerance_X: +/- 0.2
- General_Tolerance_XX: +/- 0.15
