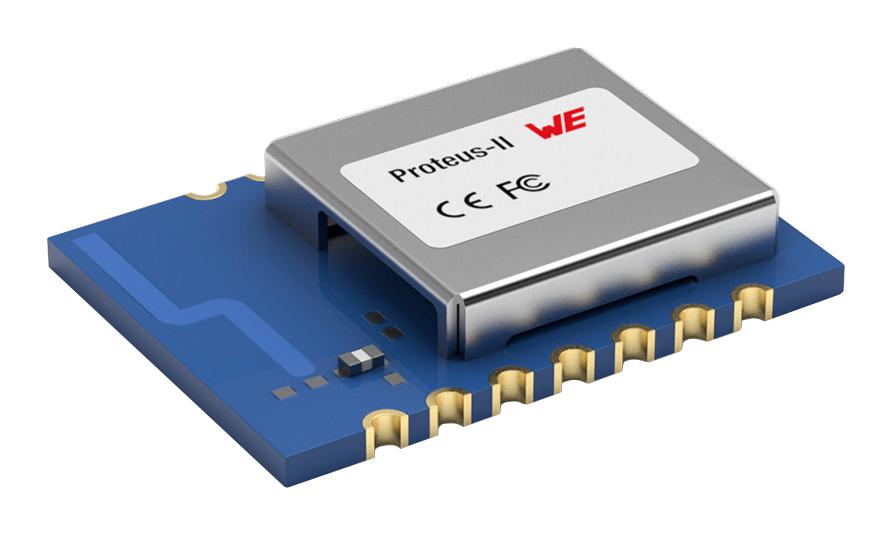

WURTH ELEKTRONIK 2608011124010 Bluetooth Module
WURTH ELEKTRONIK Bluetooth smart 5.0 module is designed for wireless connectivity in IoT and automation applications. It features the Nordic nRF52832 chipset, offering Bluetooth 5.0 support, up to 100 meters line of sight range, and maximum data rate of 2000 kbps. The module operates within -40°C to +85°C, with a supply voltage of 3 V to 3.6 V and current consumption of 54 mA (receiving) and 75 mA (transmitting). Compact and reliable, it is suitable for embedded systems requiring efficient Bluetooth communication.
WURTH ELEKTRONIK 2608011124010 Bluetooth Module Specifications:
- Communication Protocol: Bluetooth 5.0 (BLE)
- Antenna Connector Type: External RF pad
- Line of Sight Range: Up to 100 meters
- Max Data Rate: 2000 kbps
- Operating Temp Range: -40°C to +85°C
- Supply Voltage: 3 V to 3.6 V
- Supply Current Transmitting: 75 mA (typ.)
- Supply Current Receiving: 54 mA (typ.)
- Memory Size (Flash): 524288 B
- Memory Size (RAM): 65536 B
- Radio Chipset: Nordic nRF52832
- Interface: UART 115.2 kbps
- Optional: External antenna connection via RF pad
Buy the WURTH ELEKTRONIK Series Bluetooth 5.0 Module: 2608011124010
Buy the WURTH ELEKTRONIK Bluetooth 5.0 module online today and enhance your IoT and automation projects with reliable wireless communication. Designed with the Nordic nRF52832 chipset, it supports Bluetooth 5.0 standards, providing up to 100 meters line-of-sight range and data rates of 2000 kbps. Operating from -40°C to +85°C and consuming minimal power, this compact module is perfect for embedded systems requiring efficient, long-range wireless connectivity. Easy to integrate and certified for global standards, order now for seamless wireless solutions.
Get WURTH ELEKTRONIK Bluetooth 5.0 module today—engineered for high reliability and long-range wireless connectivity.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 2608011124010?
You can click on the BUY or RFQ button to purchase 2608011124010 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 2608011124010?
You can download the 2608011124010 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 2608011124010?
WURTH ELEKTRONIK
