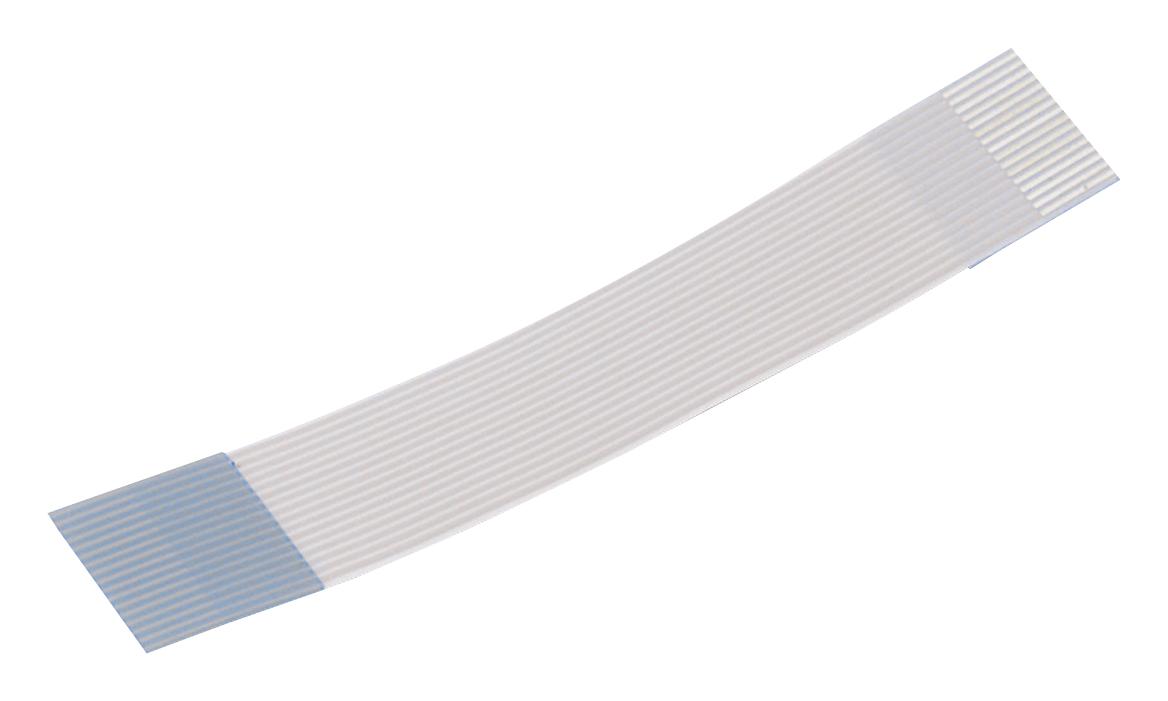

WURTH ELEKTRONIK 686715200001 Flat Flexible Cable
The WR-FFC Flat Flexible Cable is a high-quality Type 2, 1.00 mm pitch cable designed for electronic equipment connections. Made with durable PET insulator and copper conductors, it features tin-plated contacts for reliable electrical connection. Operating within -30°C to +105°C, the cable offers excellent flexibility, moisture resistance, and flame ratings according to UL standards. Suitable for various industrial and electronic applications, it ensures durability through multiple mating cycles and robust electrical properties, making it ideal for complex wiring and flexible circuit needs.
WURTH ELEKTRONIK 686715200001 Flat Flexible Cable Specifications:
- Pitch: 1.00 mm
- Conductor Material: Copper
- Conductor Resistance: 1.09 Ω max
- Insulation Material: PET (White)
- Support Tape Thickness: 0.225 mm
- Insulation Thickness: 0.043 mm
- Operating Temperature Range: -30°C to +105°C
- Flammability Rating: UL SUB.758
- Rated Current: 1 A max
- Working Voltage: 60 V
- Insulation Resistance: 500 MΩ min at 1000 V
- Withstanding Voltage: 500 V AC for 1 min without breakdown
- Flexing Test: 180° bend, 20 times
- Abrasion Resistance: 10,000 cycles
- Moisture Resistance: 96 hours at 40°C, 95% RH
- Heat Resistance: 110°C for 96 hours
Buy the Buy WURTH ELEKTRONIK Flat Flexible Cable Part Number 686715200001 Online
Order the WURTH ELEKTRONIK Flat Flexible Cable online today for superior flexibility, durability, and high electrical performance. Designed with PET insulation and copper conductors, this cable ensures reliable connections under demanding conditions. It withstands high temperatures, moisture, and mechanical stress, making it suitable for industrial and electronic applications. Featuring UL flame rating and resistance to abrasion, it provides long-lasting service in complex wiring environments. Purchase now to enjoy fast delivery and high-quality performance for your electronic projects and manufacturing needs.
Get WURTH ELEKTRONIK 686715200001 today—built for flexible connections and reliable electronic assembly.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 686715200001?
You can click on the BUY or RFQ button to purchase 686715200001 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 686715200001?
You can download the 686715200001 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 686715200001?
WURTH ELEKTRONIK
