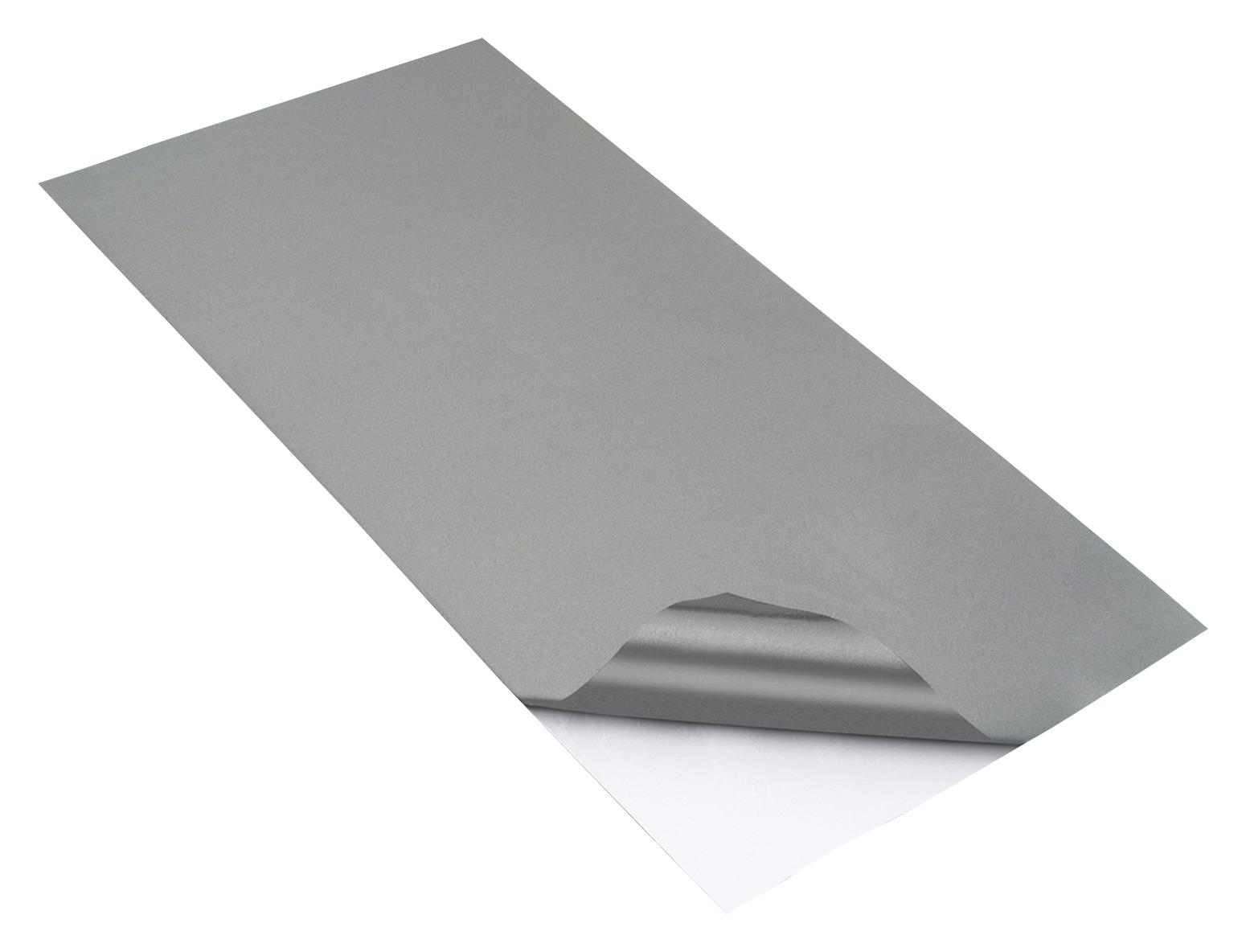

WURTH ELEKTRONIK 34401 EMI Absorber Sheet
The WE-FAS EMI Flexible Absorber sheet by Wurth Elektronik is designed for electromagnetic interference (EMI) suppression and improved electromagnetic compatibility in electronic devices. This flexible, self-extinguishing, non-inflammable material features a peel adhesion over steel of at least 4 N/cm and a maximum adhesive thickness of 0.03 mm. Certified RoHS and REACh compliant, it operates within -20°C to +90°C and withstands surface resistance up to 10 MO/square. Ideal for modern electronic equipment, it offers reliable EMI absorption, ensuring compliance with safety standards and environmental regulations.
WURTH ELEKTRONIK 34401 EMI Absorber Sheet Specifications:
- Permeability: otwr 100
- Surface Resistance: Ry, 10 MO/ square max.
- Peel Adhesion over Steel: 4 N/cm min.
- Adhesive Thickness: 0.03 mm max.
- Operating Temperature: -20°C to +90°C
- Certification: RoHS Approval Compliant, REACh Approval Conform
- Storage Conditions: < 40°C; < 75% RH
- Flame retardant: Yes, with rubber metal power, self-extinguishing
- Electrical Test Conditions: +20°C, 33% RH
Buy the Buy Wurth EMI Flexible Absorber Part Number 34401 Online
Purchase the Wurth EMI Flexible Absorber sheet now for outstanding electromagnetic interference reduction in electronic equipment. This high-quality, RoHS and REACh compliant sheet ensures excellent surface resistance of up to 10 MO per square, with a peel adhesion over steel of at least 4 N/cm and an adhesive thickness of 0.03 mm. Designed to operate within -20°C to +90°C, it offers reliable EMI absorption, flame retardant properties, and easy handling, making it ideal for maintaining compliance and safety in sensitive electronic applications.
Order your Wurth Series EMI Flexible Absorber sheet today and enhance your electronic devices with superior EMI suppression and safety features.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 34401?
You can click on the BUY or RFQ button to purchase 34401 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 34401?
You can download the 34401 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 34401?
WURTH ELEKTRONIK
