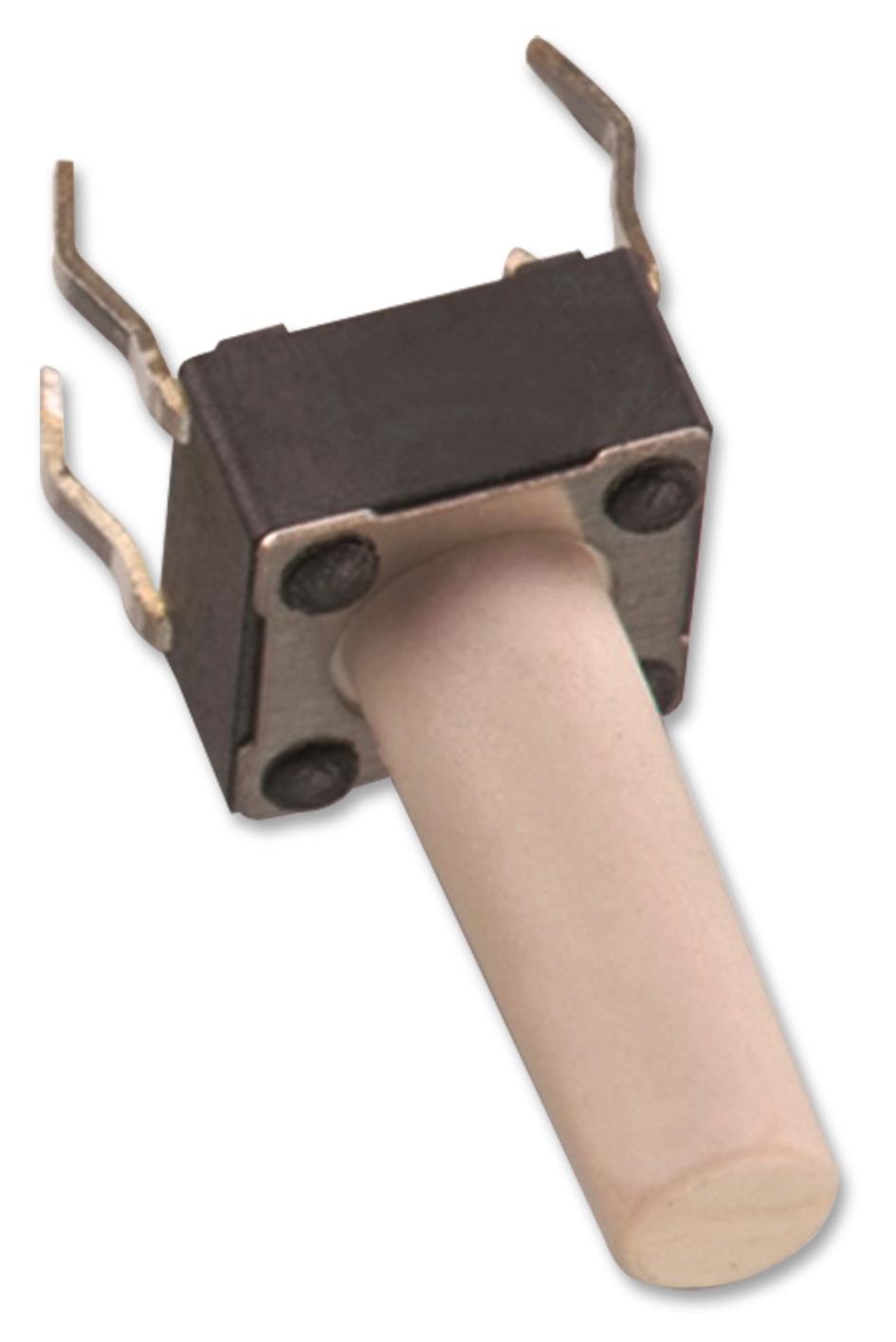

WURTH ELEKTRONIK 430156130726 Tactile Switch THT Version
The Wurth Elektronik 430156130726 is a compact tactile switch designed for through-hole technology (THT) PCB mounting. It features a stainless steel cover, LCP stem and frame (UL 94V-0), and a brass terminal with tin plating. This switch is intended for general electronics applications and offers a reliable tactile feedback mechanism. Before using in critical safety systems, a thorough evaluation is required. The switch provides a stroke of 0.25 + 0.2 mm / - 0.1 mm and operates within a temperature range of -40°C to +85°C. It is ROHS and REACH compliant.
WURTH ELEKTRONIK 430156130726 Tactile Switch THT Version Specifications:
- Rating: 50mA, 12VDC
- Contact Resistance: Initial: 100mOHM max., After Life Test: 2OHM max.
- Insulation Resistance: min. 100MOHM at 500VDC
- Dielectric Strength: 250VAC for 1 minute
- Stroke: 0.25 + 0.2 mm / - 0.1 mm
- Cover Material: Stainless Steel
- Stem Material: LCP UL 94V-0
- Frame Material: LCP UL 94V-0, color Black
- Contact Material: Stainless Steel with silver cladding
- Terminal Material: Brass with tin plating
- Wave Soldering: 260°C 10sec. max
- Hand Soldering: 350°C for 3 sec. max
- Storage Temperature: -40°C ~ +85°C
- Operating Temperature: -40°C ~ +85°C
- Compliance: Lead Free, ROHS, Reach
Buy the 430156130726 WURTH ELEKTRONIK Tactile Switch THT Version | myMectronic
Purchase the Wurth Elektronik 430156130726 Tactile Switch THT Version securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 430156130726?
You can click on the BUY or RFQ button to purchase 430156130726 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 430156130726?
You can download the 430156130726 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 430156130726?
WURTH ELEKTRONIK
