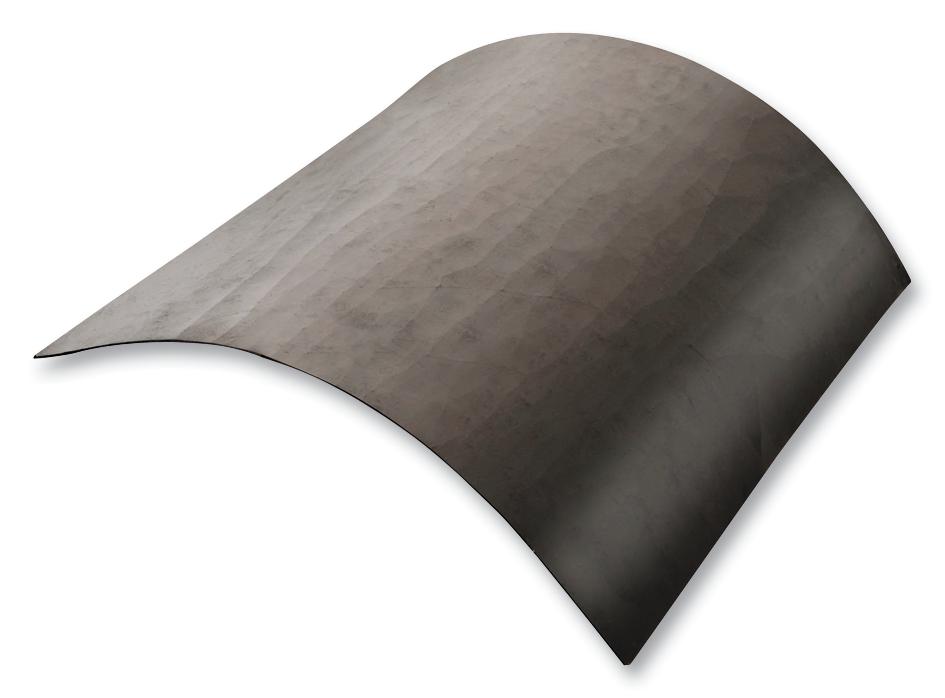

WURTH ELEKTRONIK 364006 Flexible Sintered Ferrite Sheet
The Würth Elektronik WE-FSFS 364006 is a flexible sintered ferrite sheet engineered for effective electromagnetic interference (EMI) suppression and shielding in a wide range of electronic devices. Its flexible nature allows for easy integration into complex designs, while the sintered construction provides consistent performance. This component is not intended for use in safety-critical applications without prior evaluation and approval. Proper storage and handling are crucial to maintain its properties and solderability. Refer to the datasheet for detailed specifications and usage guidelines.
WURTH ELEKTRONIK 364006 Flexible Sintered Ferrite Sheet Specifications:
- Complex Permeability @ 1 MHz: 110
- Complex Permeability @ 13.56 MHz: 120
- Complex Permeability µ'' @ 1 MHz: 2
- Complex Permeability µ'' @ 13.56 MHz: 2
- Adhesive Thickness: 0.05
- Surface Resistance: 1
- Insulation Resistance: 1
- Peel Adhesion over Steel: 6
- Thickness: 0.03
- Operating Temperature: -40 up to +85 °C
- Storage Conditions: < 40 °C ; < 75 % RH
- Moisture Sensitivity Level (MSL): 1
- Halogen Free: Conform [JEDEC JS709B]
- RoHS Approval: Compliant [2011/65/EU&2015/863]
- REACh Approval: Conform or declared [(EC)1907/2006]
