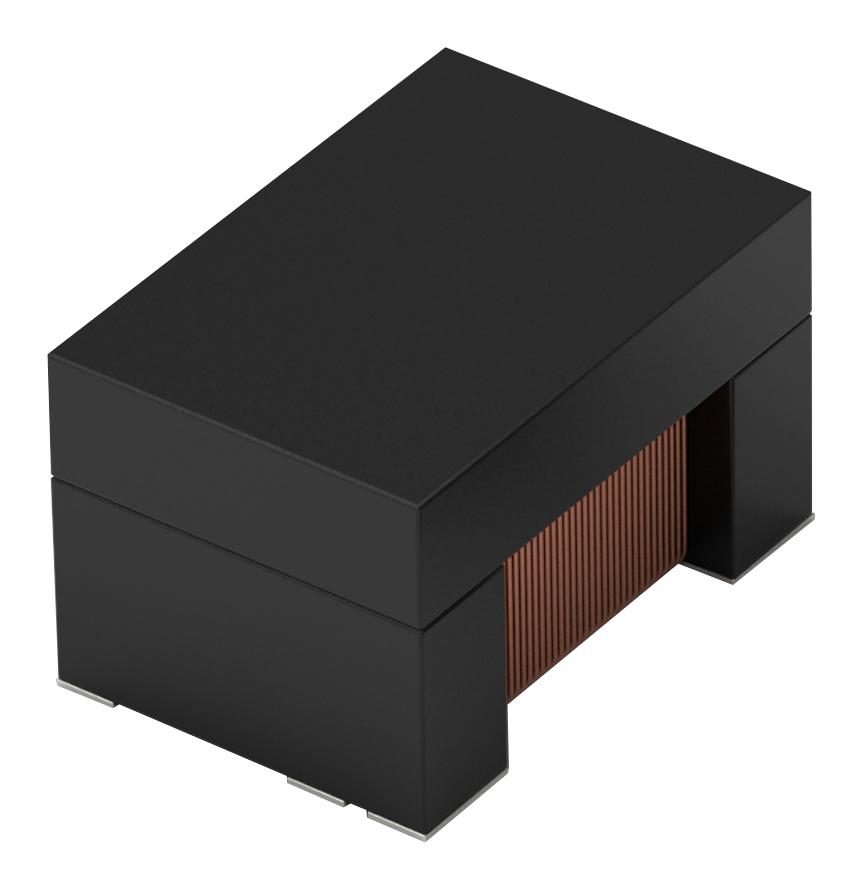

WURTH ELEKTRONIK 749302011 Signal Transformer
The WE-STST Super Tiny Signal Transformer is designed for compact electronic applications requiring efficient signal transmission. It features a high turns ratio, insulation test voltage of 400 V, and operates within specified temperature ranges from -40°C to +105°C. The device adheres to RoHS and REACH standards, is halogen-free, and suitable for high-reliability environments. It provides excellent electrical performance with rapid response times, making it ideal for sensitive signal amplification, filtering, and isolation in modern electronic circuits.
WURTH ELEKTRONIK 749302011 Signal Transformer Specifications:
- Turns Ratio: 1454.51 21%
- Insulation Test Voltage: 400 V (min)
- Operating Temperature: -40°C to +105°C
- Storage Conditions: < 40°C; < 75% RH
- RoHS, REACH, Halogen Free compliance
- Maximum temperature of component: +105°C
- Schematic: High frequency transformer for signal isolation
- Packaging: Tape and Reel according to IEC 60286-3:2013
- Peak package body temperature: 260°C (Pb-Free assembly, <1.6mm package thickness)
- Reflow profile: Preheat min 150°C, max 200°C, duration 60-120 sec, peak temperature around 260°C, ramp-up rate 3°C/sec, ramp-down rate 6°C/sec
Buy the Buy WURTH ELEKTRONIK WE-STST Signal Transformer Part Number 749302011 Online
Purchase the WURTH ELEKTRONIK WE-STST Signal Transformer online for exceptional performance in compact designs. Engineered for high-frequency signal isolation, it ensures reliable operation within -40°C to +105°C. Compliant with RoHS, REACH, and halogen-free standards, this transformer is suitable for sensitive electronic applications requiring safety and durability. Its tape and reel packaging streamline assembly processes, reducing downtime. Whether for filtering, amplification, or isolation, this transformer guarantees precision and long-lasting performance in modern electronic devices.
Get WURTH ELEKTRONIK WE-STST 749302011 today—designed for high reliability and efficient signal processing in compact electronic circuits.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 749302011?
You can click on the BUY or RFQ button to purchase 749302011 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 749302011?
You can download the 749302011 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 749302011?
WURTH ELEKTRONIK
