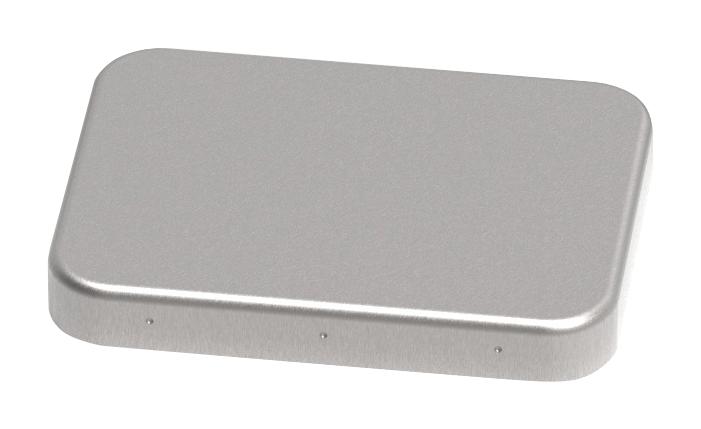

WURTH ELEKTRONIK 3671466 Two-Piece Seamless Shielding Cabinet
The Würth Elektronik WE-SHC 3671466 is a two-piece seamless shielding cabinet designed to provide electromagnetic compatibility (EMC) protection for sensitive electronic components. This cabinet is intended for use in general electronic equipment and is not suitable for applications requiring high safety or reliability standards without prior written approval. Constructed with a steel core and tin plating, the WE-SHC 3671466 offers excellent shielding performance. It is RoHS compliant and conforms to halogen-free standards (JEDEC JS709B and IEC 61249-2-21). Proper storage and handling are crucial to maintain solderability and prevent damage.
WURTH ELEKTRONIK 3671466 Two-Piece Seamless Shielding Cabinet Specifications:
- Dimensions_sectional_drawing_A_A_Inner: 0.3 mm
- Dimensions_sectional_drawing_A_A_Outer: 17.9 ± 0.2 mm
- Dimensions_sectional_drawing_A_A_Outer_2: 47.2 ± 0.2 mm
- Dimensions_sectional_drawing_A_A_Outer_3: 4.0 ref. mm
- Core_Material: Steel
- Plating: Tin
- RoHS_Approval: Compliant [2011/65/EU&2015/863]
- REACh_Approval: Conform or declared [(EC)1907/2006]
- Halogen_Free: Conform [JEDEC JS709B]
- Halogen_Free_2: Conform [IEC 61249-2-21]
- Assembly_with_Frame_Cover: 3671466
- Assembly_with_Frame_Frame: 3670466
- Operating_Temperature: -40 up to +125 °C
- Storage_Conditions_in_original_packaging: < 40 °C ; < 75 % RH
- Moisture_Sensitivity_Level_MSL: 1
- Test_conditions_of_Electrical_Properties: +20 °C, 33 % RH
- General_Tolerance: DIN ISO 2768-1m
