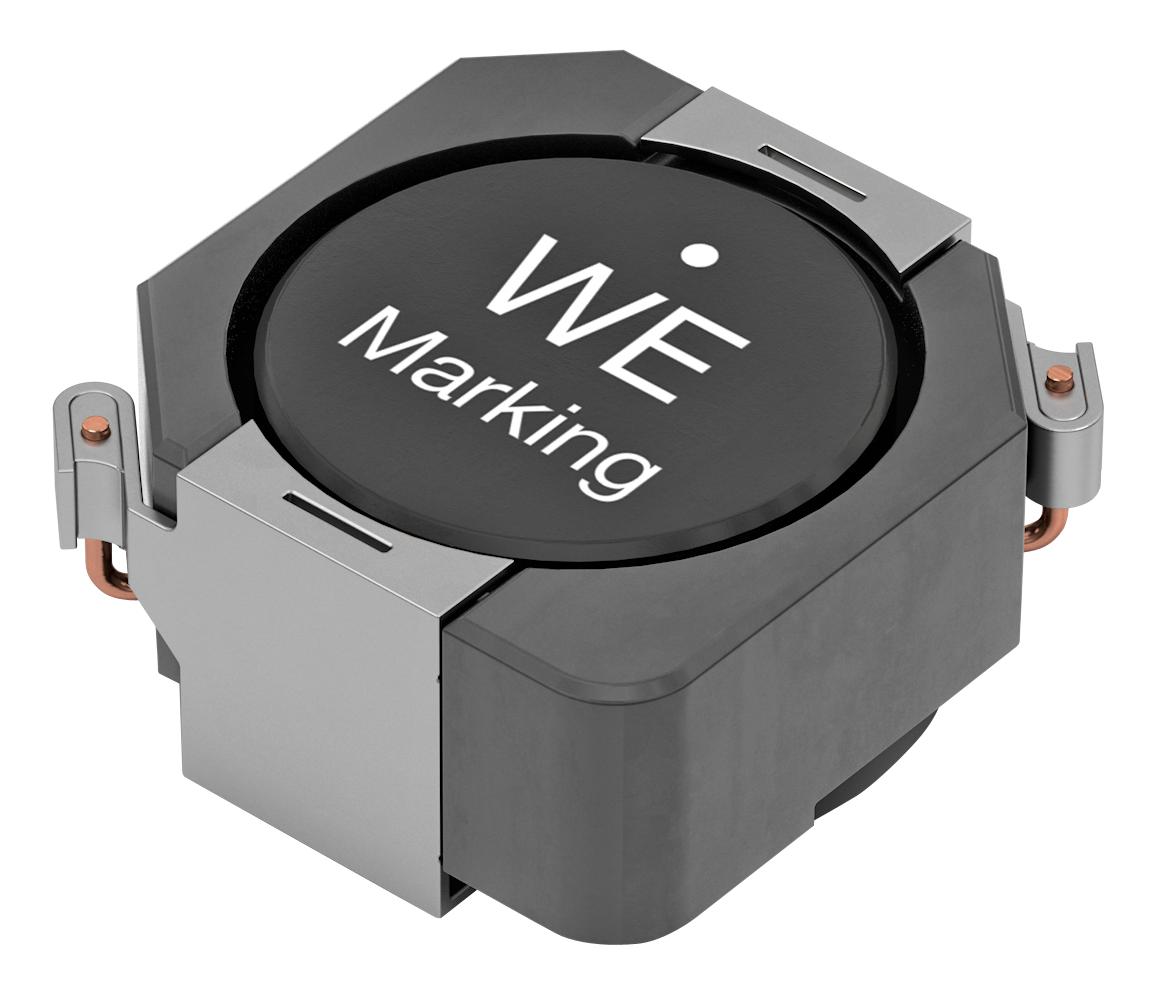

WURTH ELEKTRONIK 7447706047 Shielded Power Inductor
The WE-PD Performance SMT Shielded Power Inductor by Wurth Elektronik is a high-quality, compact power inductor designed for electronic applications requiring efficient energy storage and magnetic withstand capabilities. It features a rated current of 81 A, induction of 47 μH with a tolerance of +20%, and operates within a temperature range of -40°C to +150°C. This component complies with RoHS, REACH, and halogen-free standards, making it suitable for demanding industrial, automotive, and consumer electronics applications, ensuring reliable performance in high-frequency power supply circuits.
WURTH ELEKTRONIK 7447706047 Shielded Power Inductor Specifications:
- Inductance: 47 μH with ±20% tolerance
- Rated Current: 81 A
- Saturation Current: 11.5 A typ.
- DC Resistance: 9 mΩ @ 20°C (typ.), 12 mΩ (max.)
- Self Resonant Frequency: 27.4 MHz
- Operating Voltage: 120 V
- Temperature Range: -40°C to +150°C
- RoHS, REACH, Halogen Free compliant
- Moisture Sensitivity Level: 1
- Case and Material: Compact SMT design, compliant with IEC standards
- Recommended Land Pattern: 29 mm, 7.0 x 12.8 mm dimension
- Soldering Profile: Peak temperature 260°C, max time above Tpeak 60-150 sec
Buy the Buy Wurth Elektronik Shielded Power Inductor Part Number 7447706047 Online
Order the Wurth Elektronik Shielded Power Inductor number 7447706047 online today and enjoy fast delivery, excellent quality, and dependable performance for your electronic projects. Designed to meet industry standards such as RoHS, REACH, and halogen-free certifications, this compact inductor is ideal for high-frequency power supply circuits in industrial, automotive, and consumer electronics. Its high rated current of 81 A, low DCR, and resonance frequency ensure efficient energy transfer and minimal power loss. Get yours now to enhance your device’s energy efficiency and reliability with a trusted brand.
Buy Wurth Elektronik 7447706047 now and experience unmatched reliability and high-frequency performance in electronic power applications.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 7447706047?
You can click on the BUY or RFQ button to purchase 7447706047 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 7447706047?
You can download the 7447706047 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 7447706047?
WURTH ELEKTRONIK
