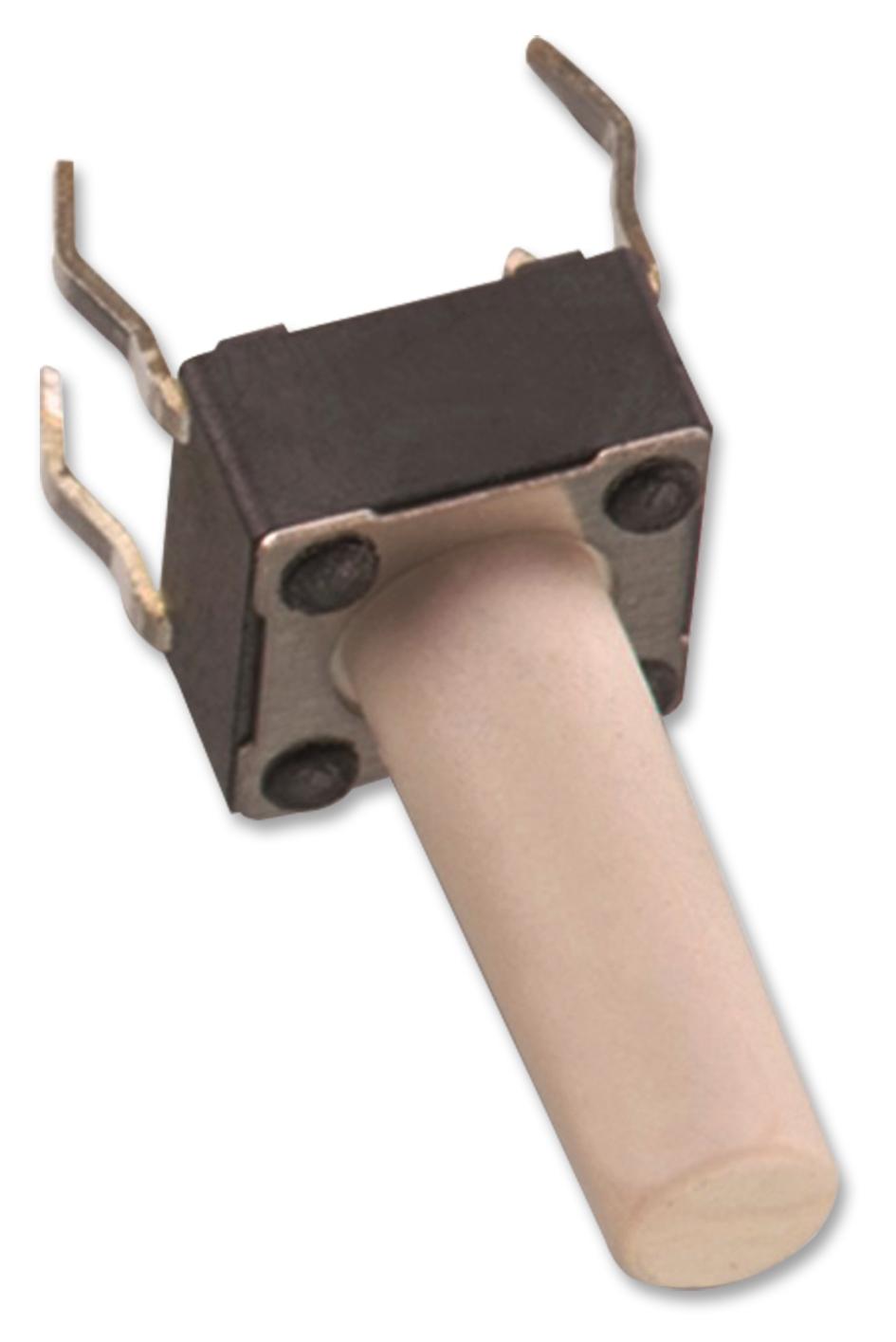

WURTH ELEKTRONIK 430156095726 THT Switch
The Wurth Elektronik 430156095726 is a THT (Through-Hole Technology) tactile switch designed for integration into electronic circuits. It boasts stainless steel components and a durable LCP (Liquid Crystal Polymer) housing, ensuring longevity and reliability. This switch is suitable for a wide range of applications, but users are advised to perform thorough safety evaluations before use in critical systems. It is compliant with ROHS and Reach standards.
WURTH ELEKTRONIK 430156095726 THT Switch Specifications:
- Rating: 50mA, 12VDC
- Contact Resistance: Initial: 100mOHM max., After Life Test: 2OHM max.
- Insulation Resistance: min. 100MOHM at 500VDC
- Dielectric Strength: 250VAC for 1 minute
- Stroke: 0.25 + 0.2 mm / - 0.1 mm
- Cover Material: Stainless Steel
- Stem Material: LCP UL 94V-0
- Frame Material: LCP UL 94V-0, color Black
- Contact Material: Stainless Steel with silver cladding
- Terminal Material: Brass with tin plating
- Wave Soldering: 260°C 10sec. max
- Hand Soldering: under 350°C for 3 sec. max
- Storage Temperature: -40°C ~ +85°C
- Operation Temperature: -40°C ~ +85°C
- Compliance: Lead Free, ROHS, Reach
