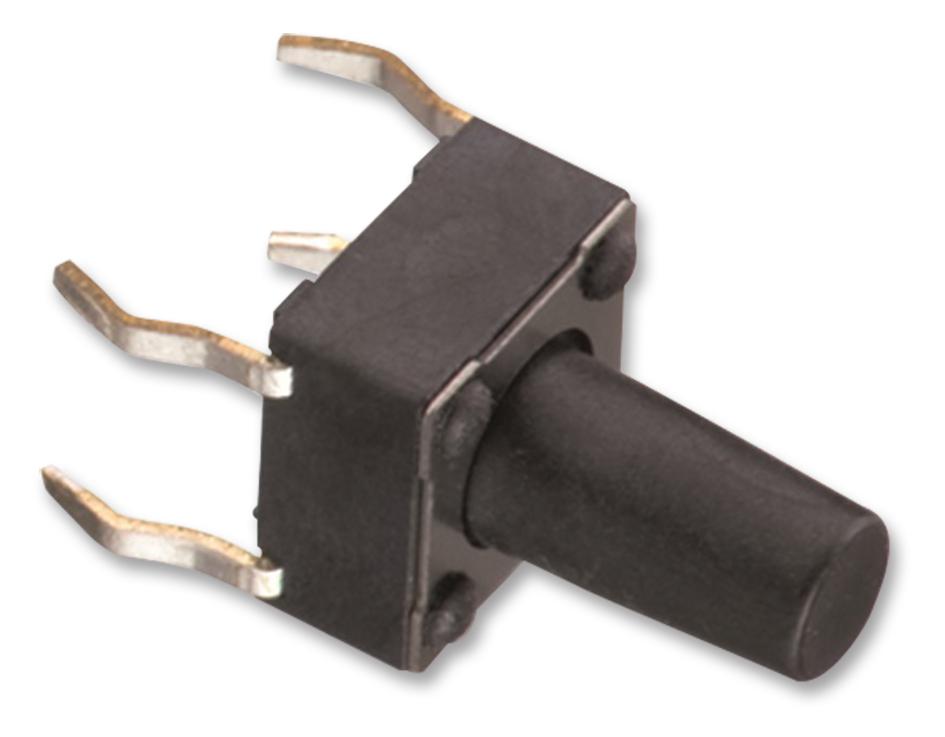

WURTH ELEKTRONIK 430186130716 THT Switch Terminal Block
The Wurth Elektronik 430186130716 is a THT (Through-Hole Technology) switch terminal block designed for robust and dependable connections in a wide range of electronic applications. Constructed with stainless steel and featuring tin plating on the terminal, this component ensures excellent electrical conductivity and resistance to corrosion. It is suitable for use in general electronics equipment and is compliant with ROHS standards. Before incorporating this component into critical systems like aerospace or automotive control, user approval from Wurth Elektronik is required to ensure suitability for high-reliability applications.
WURTH ELEKTRONIK 430186130716 THT Switch Terminal Block Specifications:
- Rating: 50mA, 12VDC
- Contact Resistance: Initial: 100mOHM max., After Life Test: 2OHM max.
- Insulation Resistance: min. 100MOHM at 500VDC
- Dielectric Strength: 250VAC for 1 minute
- Stroke: 0.25 + 0.2 mm / - 0.1 mm
- Cover Material: Stainless Steel
- Stem Material: LCP UL 94V-0
- Frame Material: LCP UL 94V-0, color Black
- Contact Material: Stainless Steel with silver cladding
- Terminal Material: Brass with tin plating
- Wave Soldering: 260°C 10sec. max
- Hand Soldering: under 350°C for 3 sec. max
- Storage Temperature: -40°C ~ +85°C
- Operation Temperature: -40°C ~ +85°C
- Compliance: Lead Free, ROHS, Reach
Buy the 430186130716 WURTH ELEKTRONIK THT Switch Terminal Block | myMectronic
Purchase the Wurth Elektronik 430186130716 THT Switch Terminal Block securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 430186130716?
You can click on the BUY or RFQ button to purchase 430186130716 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 430186130716?
You can download the 430186130716 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 430186130716?
WURTH ELEKTRONIK
