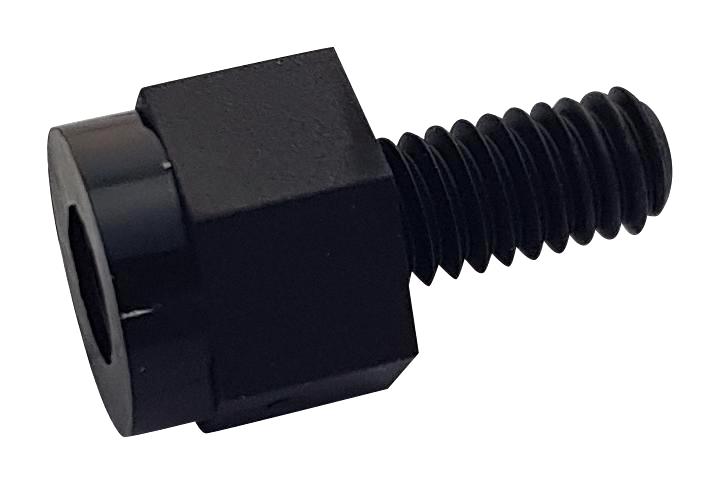

WURTH ELEKTRONIK 971080155 Plastic Spacer Stud
The Würth Elektronik WA-SPAIE 971080155 is a plastic spacer stud designed to provide secure and reliable fastening in general electronic equipment. Constructed from durable black polyamide, this spacer features both internal and external M2.5 threads, facilitating easy integration into various assemblies. It boasts a UL94 HB flammability rating, ensuring safety in a range of applications. The component is RoHS compliant and conforms to halogen-free standards (IEC 61249-2-21 and JEDEC JS709B). Suitable for applications requiring a secure and reliable fastening solution, this spacer is an essential component for maintaining structural integrity and preventing short circuits in electronic devices. Proper storage and handling are crucial to ensure optimal performance and longevity.
WURTH ELEKTRONIK 971080155 Plastic Spacer Stud Specifications:
- Dimensions_A_mm: N/A
- SW_mm: 5
- Lu0_1_mm: N/A
- Tlo_mm: 8
- Ti_mm: M2.5
- To_mm: M2.5
- Tli_mm: 6
- Material: Polyamide
- Color: Black
- Flammability_Rating: UL94 HB
- RoHS_Approval: Compliant [2011/65/EU&2015/863]
- REACh_Approval: Conform or declared [(EC)1907/2006]
- Halogen_Free_IEC: Conform [IEC 61249-2-21]
- Halogen_Free_JEDEC: Conform [JEDEC JS709B]
- Operating_Temperature_C: -30 up to +110
- Storage_Conditions_C: < 40 °C
- Storage_Conditions_RH: < 75 %
- Moisture_Sensitivity_Level_MSL: 1
- Packaging: Bag
- Length_L_mm: 8
- Inner_Thread: M2.5
- Outer_Thread: M2.5
- Inner_Thread_Length_Tli_mm: 6
- Outer_Thread_Length_Tlo_mm: 8
- Wrench_SW_mm: 5
- Thread_Type: with Metric Thread, internal/external
