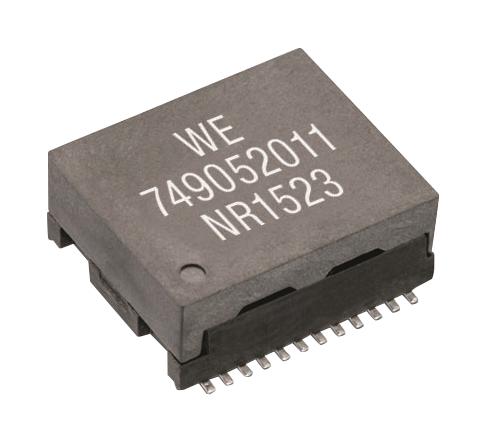

WURTH ELEKTRONIK 749052050 Ethernet Transformer
The LAN-Transformer WE-LAN 10G from WURTH ELEKTRONIK is a high-performance Ethernet transformer designed for supporting Ethernet applications up to 10 Gbps. It features a ferrite core for reliable signal transmission, a compact size with dimensions approximately 14.70 x 6.80 mm, and is constructed with UL94V-0 rated housing and potting materials for safety and durability. Suitable for industrial and network equipment, this transformer supports PoE applications up to 50W or 100W at 57VDC, ensuring high efficiency and minimal signal loss at frequencies up to 500MHz.
WURTH ELEKTRONIK 749052050 Ethernet Transformer Specifications:
- Dimensions: approximately 14.70 x 6.80 mm
- Base Material: Ferrite
- Housing: UL94V-0 rated
- Potting: UL94V-0 rated
- Operating Temperature: 0°C - +70°C
- Inductance at 100kHz / 100mV: 180 HH min.
- Transmission Speed: Supports up to 10 Gbps Ethernet
- PoE Compatibility: Up to 50W @ 57VDC on two channels, 100W on four channels
- Insertion Loss at 250MHz: 1.0 dB max.
- Return Loss at 200MHz: 13.0 dB min.
- Differential Mode Rejection: 30.0 dB min. (100MHz-300MHz)
- Crosstalk: 30.0 dB min. (100Hz-500MHz)
Buy the WURTH ELEKTRONIK Series WE-LAN 10G Ethernet Transformer: 749052050
Purchase the WURTH ELEKTRONIK WE-LAN 10G Ethernet Transformer online now for efficient and reliable networking applications. This high-performance component is ideal for industrial Ethernet setups, supporting up to 10 Gbps speeds and PoE up to 100W at 57VDC. Its compact design, UL94V-0 rated housing, and excellent signal integrity ensure durability and safety. Perfect for networking equipment requiring high reliability, minimal signal loss, and compliance with security standards. Enhance your network infrastructure today with this proven Ethernet transformer.
Get WURTH ELEKTRONIK WE-LAN 10G Ethernet Transformer today—built for high-speed data transmission and long-lasting reliability.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 749052050?
You can click on the BUY or RFQ button to purchase 749052050 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 749052050?
You can download the 749052050 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 749052050?
WURTH ELEKTRONIK
