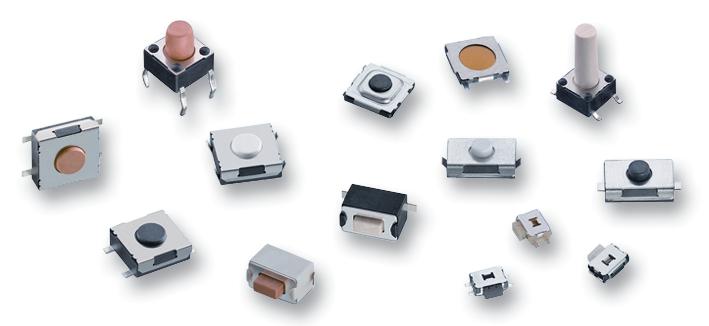

WURTH ELEKTRONIK 436351045816 Push Tact Switch
This is a side push tact switch designed for general electronic applications where reliability and safety are crucial. With a rated current of 50mA and 12VDC, it features stainless steel covers and contact parts, high insulation resistance, and dielectric strength. The switch supports lead-free, RoHS, and Reach compliance, ensuring eco-friendly operation. It offers a bounce time of maximum 10ms, with available versions in white and black stems, and is suitable for PCB mounting using reflow or hand soldering techniques. Its durable construction makes it ideal for automation, control systems, and safety-critical electronic devices.
WURTH ELEKTRONIK 436351045816 Push Tact Switch Specifications:
- Rating: 50mA, 12VDC
- Contact Resistance: Initial 100mΩ max., After Life Test 10Ω max.
- Insulation Resistance: min. 100MΩ at 500VDC
- Dielectric Strength: 250VAC for 1 minute
- Bounce: 10ms max.
- Material: Cover - Stainless Steel; Stem - PA46 UL HB; Frame - PA46 UL HB, Black
- Contact: Stainless Steel with silver plating; Terminal: Copper alloy with silver plating
- Tape: Polyimide tape
- Soldering: Reflow according to JEDEC J-STD 020, hand soldering under 350°C for 3 sec.
- Environmental: Operates at +85°C, complies with RoHS, Reach, and lead-free standards
- Packaging: Tape & Reel, available in white or black stems, with lifecycles up to 200,000 cycles
Buy the Wurth Elektronik 436351045816 – Reliable Push Tact Switch for Industrial Applications
Order the Wurth Elektronik push tact switch online today to ensure high reliability and safety for your electronic projects. This switch features a stainless steel cover, a 50mA/12VDC rating, and RoHS, Reach compliance. Suitable for PCB mounting with reflow or hand soldering, it offers a quick bounce time of 10ms, durable contact materials, and a variety of stem color options. Perfect for automation, control, safety, and control devices, ensuring robust performance in demanding industrial environments.
Buy Wurth Elektronik 436351045816 now and experience unmatched reliability and performance in safety-critical electronic systems.
