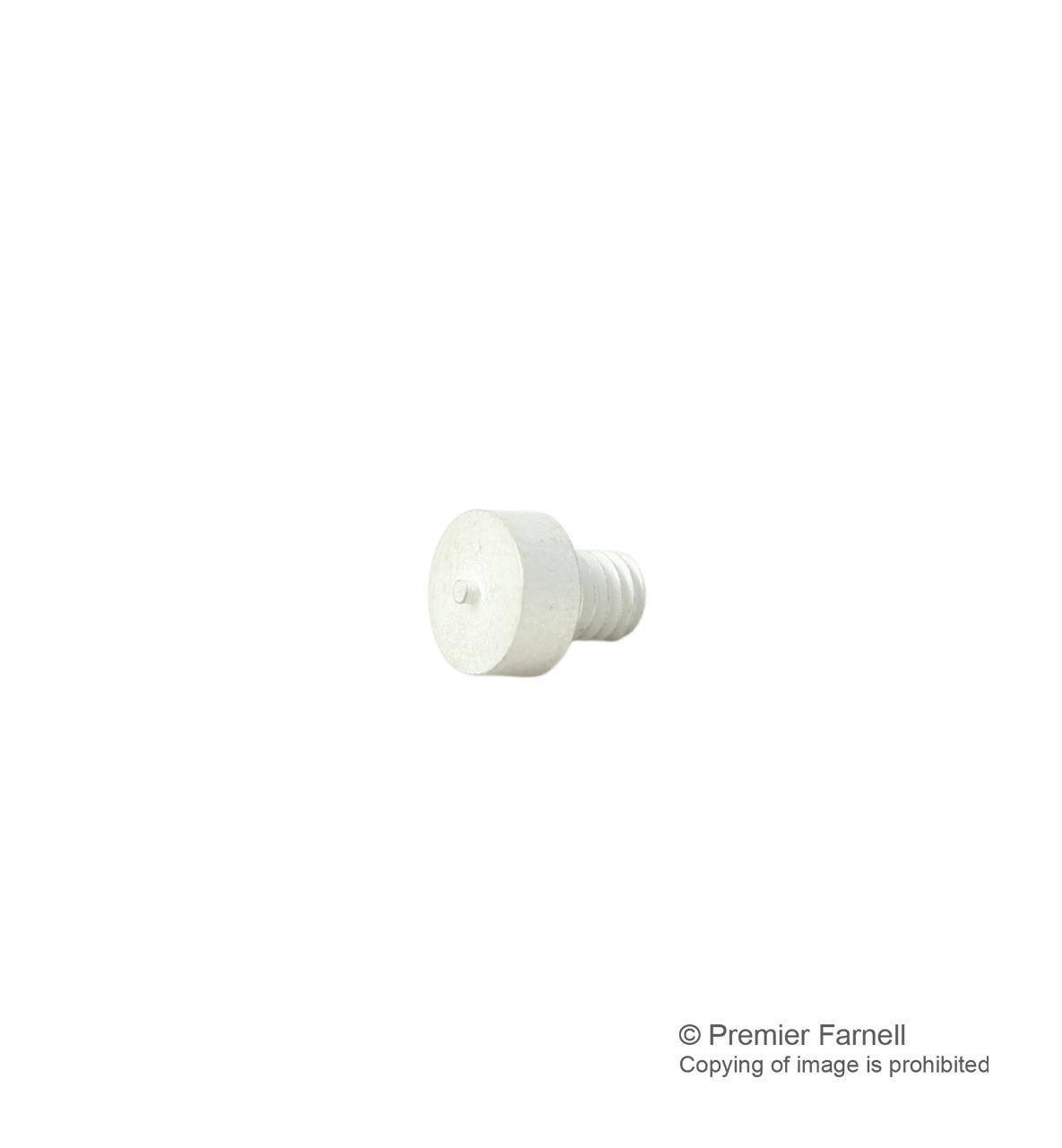

WURTH ELEKTRONIK 7466114 SMT Shank
The WP-SMSH SMT Shank from Wirth Elektronik is designed for general electronic equipment, featuring a tin-plated copper-zinc material, M4 thread, and a maximum rated current of 50A. It offers reliable soldering with a 150 μm thick solder cream and adheres to strict reflow profile standards, ensuring optimal mechanical and electrical performance. Suitable for automated PCB assembly, it supports high safety standards, with corrosion resistance and precise mechanical properties for robust electronic connections in industrial applications. Not recommended for safety-critical or high-reliability environments without additional evaluation.
WURTH ELEKTRONIK 7466114 SMT Shank Specifications:
- Material: CuZn39Pb3
- Surface: Tin plated
- Thread: M4
- Tightening Torque: 1.2Nm
- Solder Cream Thickness: 150 μm
- Rated Current: 50 A max.
- Reflow Profile: Preheat 150°C to 200°C, Max Ramp 3°C/s, Peak Temperature 217°C, Time Above T: 60-150 sec
- Package Type: Buk
- Temperature Rating: -55°C to +105°C
- Dimensions: Standard for SMT shank, exact size varies per model
- Certifications: RoHS & REACh compliant
- Application: General electronic equipment, PCB assembly
- Disallowed: Safety-critical applications without additional assessment
Buy the Wirth Elektronik Series SMT Shank: WP-SMSH 7466114
Purchase the Wirth Elektronik WP-SMSH SMT Shank online today and ensure secure, reliable PCB connections for your industrial electronics. Featuring a tin-plated copper-zinc construction, M4 thread, and a 50A maximum current rating, this component supports high-quality soldering with a 150 μm solder cream thickness and adheres to strict reflow soldering profiles for optimal performance. Suitable for automated assembly, it complies with RoHS and REACh standards, offering durability and safety in general electronic applications. Enhance your manufacturing process with this dependable and precise SMT shank.
Buy Wirth Elektronik WP-SMSH SMT Shank now and experience unmatched reliability and performance in your electronic assembly projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 7466114?
You can click on the BUY or RFQ button to purchase 7466114 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 7466114?
You can download the 7466114 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 7466114?
WURTH ELEKTRONIK
