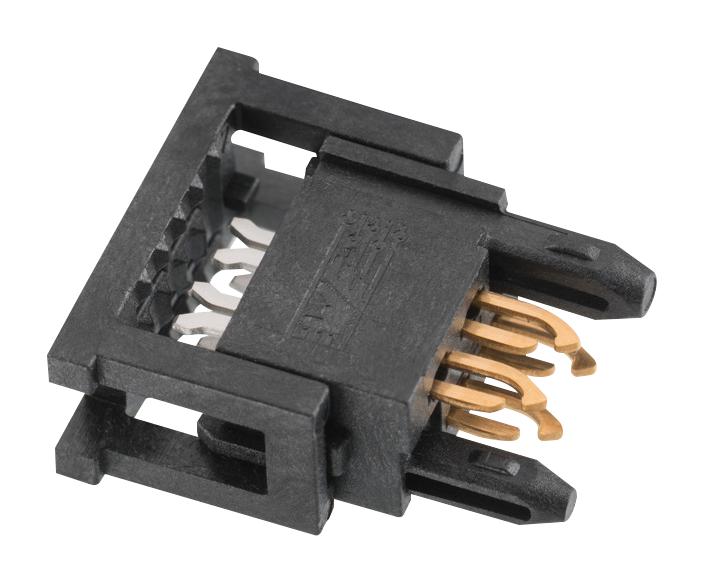

WURTH ELEKTRONIK 490107670612 SKEDD Connector
The WURTH ELEKTRONIK SKEDD Connector is an advanced, PCB-mounted electrical connection designed for general electronic applications including debugging, programming, and automation systems. Made with durable materials, it features gold and tin plating for reliable contact resistance and RoHS compliance, ensuring environmental safety. Suitable for applications requiring up to 105°C operating temperature, it supports multiple mating cycles with a rated current of 1A and a working voltage of 100V. The connector's design emphasizes mechanical stability, ease of use, and long-term performance in various industrial and electronic projects.
WURTH ELEKTRONIK 490107670612 SKEDD Connector Specifications:
- Number of Pins: 6
- Material: Copper contact with Au (SKEDD) and Sn plating
- Insulator Material: Thermoplastic, UL94V-0
- Operating Temperature: -25°C to +105°C
- Rated Current: 1 A
- Working Voltage: 100 V AC
- Contact Resistance: Max. 20 mΩ
- Insulation Resistance: Min. 1 GΩ at 20°C
- Withstanding Voltage: 500 V for 1 min.
- Dimensions: Various sizes, 15 mm and 21 mm length options, PCB thickness 1.6 mm
- Number of Mating Cycles: 50 cycles
- Certification: RoHS compliant, UL94V-0 flammability rating
Buy the WURTH ELEKTRONIK Series SKEDD Connector: 490107670612
Discover the WURTH ELEKTRONIK SKEDD Connector, engineered for dependable PCB connections in industrial electronics, debugging, and programming. With 6 pins, gold and tin plating, a maximum temperature of 105°C, and RoHS compliance, this connector offers excellent electrical performance and durability. Its design supports up to 50 mating cycles and features a rated current of 1A and 100V working voltage, ensuring versatility across various applications. Secure yours online to enhance your electronic assembly with trusted, high-quality connectors designed for long-term reliability and ease of installation.
Order your WURTH ELEKTRONIK Series SKEDD Connector 490107670612 today and ensure reliable, easy-to-use PCB connections for your electronic projects.
