WURTH ELEKTRONIK 61205023021 IDC Connector

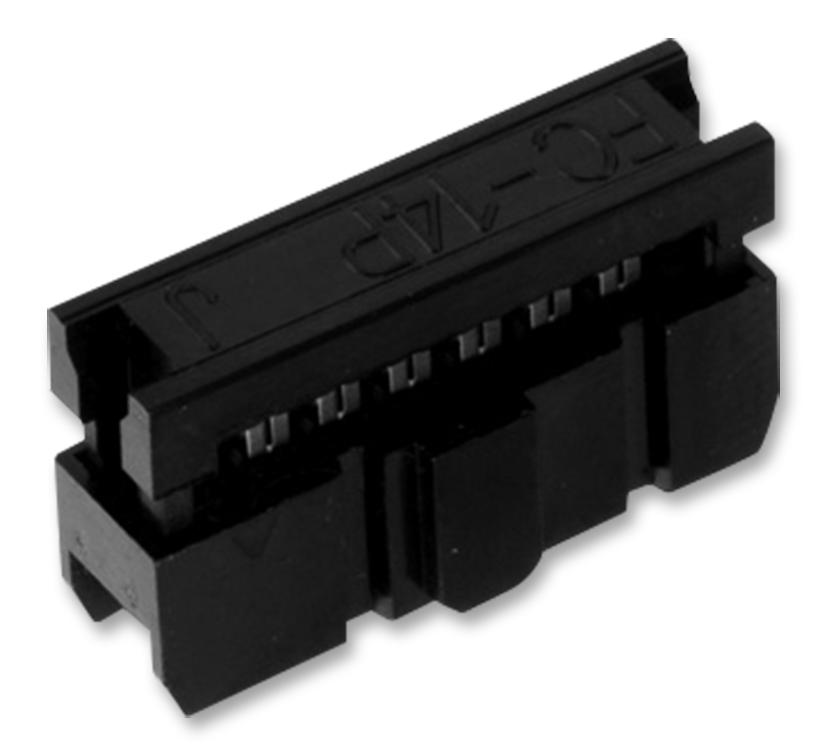

This 2.54mm female IDC connector with strain relief features a robust design with a PBT insulator, copper alloy contacts, and selective gold plating for reliable connections. Operating efficiently between -40°C to 125°C, it supports up to 1A current and 250V AC voltage, making it ideal for high-quality electronic assemblies. Its UL94-V0 flammability rating ensures safety, while compliance with RoHS and lead-free standards guarantees environmental friendliness. The connector's dimensions and accessories, including trays and packaging, facilitate easy installation and secure housing in various electronic configurations.
WURTH ELEKTRONIK 61205023021 IDC Connector Specifications:
- Material Insulator: PBT
- Contact Material: Copper Alloys
- Contact Type: Stamped
- Pin Contact Plating: Selective Gold
- Flammability Rating: UL94-VO
- Operating Temperature: -40°C to +125°C
- Current Rating: 1A Max
- Working Voltage: 250V AC
- Insulator Resistance: >1000 Mohm
- Dielectric Withstanding Voltage: 500V AC/Min
- Contact Resistance: 20 mOhm Max
- RoHS Compliant and Lead-Free
- Dimensions vary with pin count, typical length approx 60mm for 14 pins, tray size 310mm x 274mm x 8.5mm, carton size 320mm x 290mm x 380mm
Buy the Buy Connector Manufacturer 61205023021 Part Number 61205023021 Online
Purchase the IDC connector with strain relief online today to ensure reliable PCB connections and safe operation. Designed for high performance in electronic assemblies, this connector supports a wide temperature range from -40°C to 125°C, with a current rating of 1A and working voltage of 250V AC. Its RoHS compliance and lead-free construction make it an eco-friendly choice. Easy to install with secure housing, it is suitable for both professional and hobbyist projects. Order now to streamline your electronic design needs and benefit from quick shipping and excellent customer service.
Buy Connector Manufacturer 61205023021 now and experience unmatched reliability and performance in electronic connections.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 61205023021?
You can click on the BUY or RFQ button to purchase 61205023021 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 61205023021?
You can download the 61205023021 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 61205023021?
WURTH ELEKTRONIK
