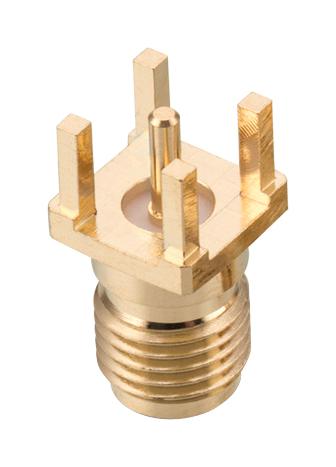

WURTH ELEKTRONIK 60312002114503 SMA Connector
This SMA PCB THT Jack Straight from Wirth Elektronik is a high-quality RF connector designed for reliable signal transmission in electronic applications. Featuring a straight orientation, gold-plated contacts, and a maximum operating temperature of +165°C, it ensures excellent electrical performance with impedance of 50 ohms and VSWR of 1.2 max. The connector withstands voltages up to 500 V AC and handles up to 5000 megaohms insulation resistance, making it suitable for a variety of high-frequency, radio frequency, and communication projects requiring durability and precision soldering.
WURTH ELEKTRONIK 60312002114503 SMA Connector Specifications:
- Impedance: 50 ohms
- Frequency Range: DC to 18 GHz
- VSWR: 1.2 max. (DC to 12.4 GHz), 1.4 max. (12.4 to 18 GHz)
- Insertion Loss: 0.14 max. (DC to 12.4 GHz), 0.28 max. (12.4 to 18 GHz)
- Contact Resistance: 3 mΩ max. initial, 4 mΩ max. after test
- Insulation Resistance: 5000 MΩ min. at 500 V in 120 sec.
- Withstanding Voltage: 500 V AC in 60 sec.
- Material: Brass body, gold-plated contacts, beryllium copper center contact
- Operating Temperature: -65°C to +165°C
- Mating Cycle: 500 cycles
- Recommended Mating Torque: 87 N·cm
- Packaging: Tray with 180 units per package
- Compliance: RoHS
- Connector Type: SMA Straight PCB Jack
Buy the Buy Wirth Elektronik SMA PCB THT Jack Straight WR- Part Number 60312002114503 Online
Get the Wirth Elektronik SMA PCB THT Jack Straight WR- with gold-plated contacts, high-frequency performance up to 18 GHz, durable construction, and RoHS compliance. Ideal for RF and communication systems, this connector provides excellent impedance stability and low insertion loss. Easy installation and long-lasting reliability make it perfect for professional electronics, aerospace, and industrial applications. Purchase online today and enhance your equipment’s signal integrity with this precision SMA connector designed for demanding environments.
Order your Wirth Elektronik SMA PCB THT Jack Straight WR- Part Number 60312002114503 today and ensure reliable high-frequency connections for your RF projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 60312002114503?
You can click on the BUY or RFQ button to purchase 60312002114503 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 60312002114503?
You can download the 60312002114503 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 60312002114503?
WURTH ELEKTRONIK
