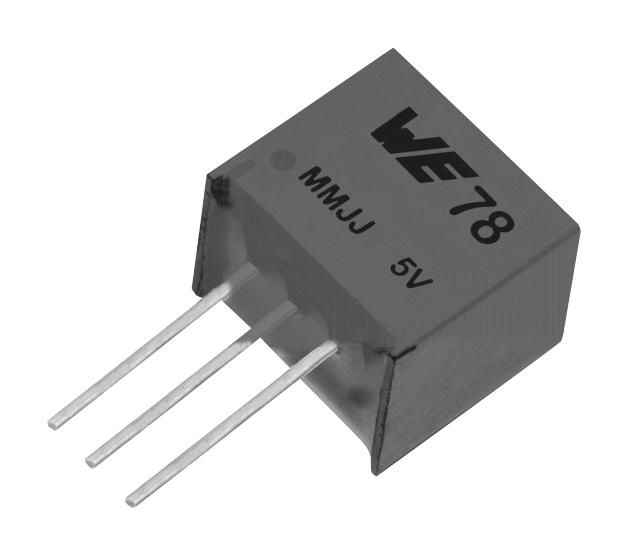

WURTH ELEKTRONIK 173950336 DC-DC Regulator
The Fixed Step Down Regulator Module from Wirth Elektronik features high efficiency, compact design, and integrated inductor, suitable for industrial electronics. It offers output voltages of 3.3V or 5V with up to 500mA current capability, and supports input voltages from 4.75V to 36V. The module includes thermal shutdown, short circuit, and overcurrent protections, making it reliable for various applications including point-of-load power supplies and microcontroller interfaces. Its efficient operation, small ripple, and compatibility with standard PCB designs ensure ease of integration and enhanced performance in demanding environments.
WURTH ELEKTRONIK 173950336 DC-DC Regulator Specifications:
- Input Voltage Range: 4.75V to 36V
- Output Voltages: 3.3V or 5V
- Output Current: Up to 500mA
- Efficiency: Up to 95%
- Switching Frequency: 710kHz
- Power Dissipation: Supported at ambient temperatures up to 85°C
- Thermal Shutdown: Yes, activates at 170°C
- Protection Features: Short circuit, overcurrent, over-temperature
- Ripple Voltage: Less than 10mVpp at full load
- Package: SIP-3, Dimensions approximately 11.6 x 10 mm
- RoHS & REACh Compliant
- Operating Temperature Range: -40°C to 85°C
Buy the Wirth Elektronik Series FDSM DC-DC Regulator Module: 173950336
Purchase the Wirth Elektronik FDSM fixed step-down regulator module online today to ensure reliable power conversion with high efficiency, integrated protections, and compact form factor. Designed for industrial, microcontroller, and interface applications, this module supports input voltages from 4.75V to 36V and delivers up to 500mA current with low ripple and high thermal stability. Its RoHS and REACh compliance guarantees safety and environmental friendliness, making it an ideal choice for your power supply needs.
Get Wirth Elektronik 173950336 today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 173950336?
You can click on the BUY or RFQ button to purchase 173950336 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 173950336?
You can download the 173950336 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 173950336?
WURTH ELEKTRONIK
