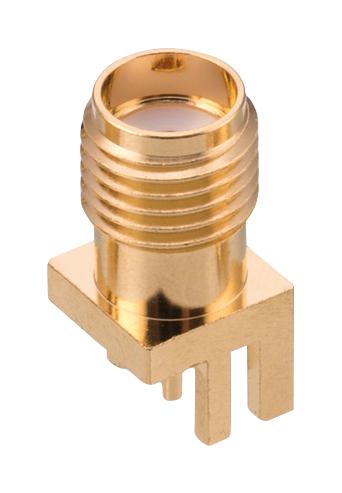

WURTH ELEKTRONIK 60312202114508 SMA RF Connector
This SMA PCB end launch jack provides reliable RF connectivity for 1.1mm PCB applications. Designed with durable materials, it features gold-plated brass contacts, a straightforward straight orientation, and high-quality insulation suitable for frequencies up to 18GHz. Its compact round body ensures secure fitting while maintaining impedance stability with a 50 Ω characteristic impedance. Approved for applications requiring RoHS compliance, the connector supports up to 500 mating cycles and withstands temperatures from -65°C to +165°C. Ideal for high-frequency RF systems, test equipment, and communication devices requiring precise, stable connections.
WURTH ELEKTRONIK 60312202114508 SMA RF Connector Specifications:
- Connector Type: SMA End Launch Jack Round
- Material: Brass Body with Gold, Min. 0.076 μm over Nickel Plating
- Center Contact Material: Beryllium Copper
- Impedance: 50 Ω
- Frequency Range: DC to 18 GHz
- VSWR: 1.2 max. from DC to 12.4 GHz, 1.4 max. from 12.4 to 18 GHz
- Insertion Loss: 0.14 max. from DC to 12.4 GHz, 0.28 max. from 12.4 to 18 GHz
- Operating Temperature: -65°C to +165°C
- Mating Cycles: 500
- Dimensions: Compatible with 1.1mm PCB thickness, suitable for high-frequency RF layout
- Insulation Resistance: 5000 MΩ at 500 V
- Contact Resistance: Initial maximum 3 mΩ, after test maximum 4 mΩ
- Withstanding Voltage: 500 V (AC) for 60 seconds
- Color: White insulator
- Packaging: Tray, units per package: 180
Buy the Wirth Elektronik Series SMA RF Connector: 60312202114508
Purchase the Wirth Elektronik SMA RF Connector 60312202114508 online today. Engineered for high-frequency RF applications, it offers exceptional performance with 50Ω impedance, gold-plated brass contacts, and support for up to 500 mating cycles. Its robust design ensures reliable connections from DC to 18 GHz, suited for test equipment, communication systems, and aerospace electronics. Easy to install and RoHS compliant, this connector guarantees durability and consistent signal integrity for demanding RF environments. Order now for fast delivery and optimal RF performance.
Get Wirth Elektronik SMA RF Connector 60312202114508 today—built for precision and long-lasting durability in high-frequency RF systems.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 60312202114508?
You can click on the BUY or RFQ button to purchase 60312202114508 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 60312202114508?
You can download the 60312202114508 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 60312202114508?
WURTH ELEKTRONIK
