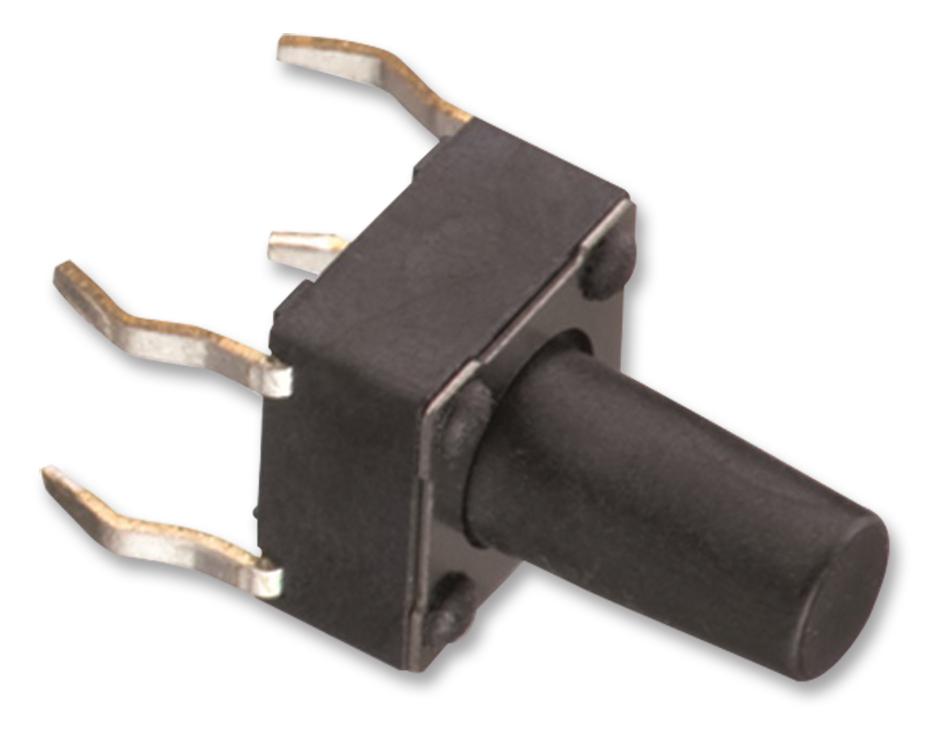

WURTH ELEKTRONIK 430186095716 THT Switch Terminal Block
The Wurth Elektronik 430186095716 is a THT switch terminal block designed for general electronics applications. It is constructed with stainless steel, LCP UL 94V-0, and brass with tin plating, ensuring durability and reliable electrical connections. This terminal block is suitable for wave and hand soldering processes and is compliant with ROHS and Reach standards. Before incorporating this component into safety-critical applications, user evaluation and approval from Wurth Elektronik are required.
WURTH ELEKTRONIK 430186095716 THT Switch Terminal Block Specifications:
- Rating: 50mA, 12VDC
- Contact Resistance: Initial: 100mOHM max., After Life Test: 2OHM max.
- Insulation Resistance: min. 100MOHM at 500VDC
- Dielectric Strength: 250VAC for 1 minute
- Stroke: 0.25 + 0.2 mm / - 0.1 mm
- Cover Material: Stainless Steel
- Stem Material: LCP UL 94V-0
- Frame Material: LCP UL 94V-0, color Black
- Contact Material: Stainless Steel with silver cladding
- Terminal Material: Brass with tin plating
- Wave Soldering Temp: 260°C 10sec. max
- Hand Soldering Temp: 350°C for 3 sec. max
- Storage Temperature: -40°C ~ +85°C
- Operation Temperature: -40°C ~ +85°C
- Compliance: Lead Free, ROHS, Reach
Buy the 430186095716 WURTH ELEKTRONIK THT Switch Terminal Block | myMectronic
Purchase the Wurth Elektronik 430186095716 THT Switch Terminal Block securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 430186095716?
You can click on the BUY or RFQ button to purchase 430186095716 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 430186095716?
You can download the 430186095716 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 430186095716?
WURTH ELEKTRONIK
