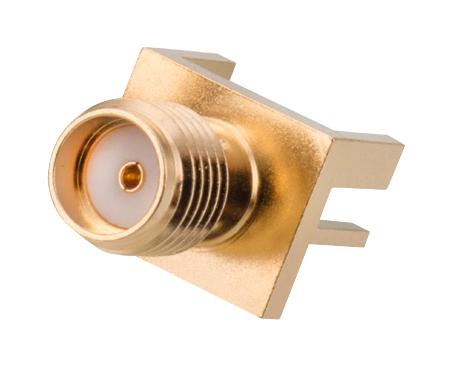

WURTH ELEKTRONIK 60312202114514 RF End Launch Connector
The SMA PCB End Launch Jack Flat is a precision RF connector designed for 1.6mm PCB thickness applications, suitable for high-frequency signals up to 18 GHz. It features a gold-plated Beryllium Copper central contact with a retention force of 26.7 N, and a brass body plated with gold over nickel. Its impedance is 50 ohms, with VSWR ratings of 1.2 max below 12.4 GHz. Designed for reliable, high-performance connections in RF and communication equipment, it complies with RoHS standards and includes packaging in trays for ease of assembly.
WURTH ELEKTRONIK 60312202114514 RF End Launch Connector Specifications:
- Connector Type: SMA End Launch Jack Flat
- PCB Thickness: 1.6 mm
- Center Contact Material: Beryllium Copper
- Contact Plating: Gold, minimum 0.76 µm over Nickel
- Outer Body Material: Brass, gold-plated over nickel
- Impedance: 50 ohms
- Frequency Range: DC to 18 GHz
- VSWR: 1.2 max below 12.4 GHz, 1.4 max from 12.4 to 18 GHz
- Insertion Loss: 0.14 max from DC to 12.4 GHz
- Contact Resistance: Initial 3 mo, after test 4 mo max
- Insulation Resistance: 5000 Mohm minimum at 500V in 120 sec
- Max Operating Temperature: +165°C
- Mechanical Durability: 500 mating cycles
- Recommended Mating Torque: 87 N·cm
- Packaging: Tray
- RoHS Compliant
