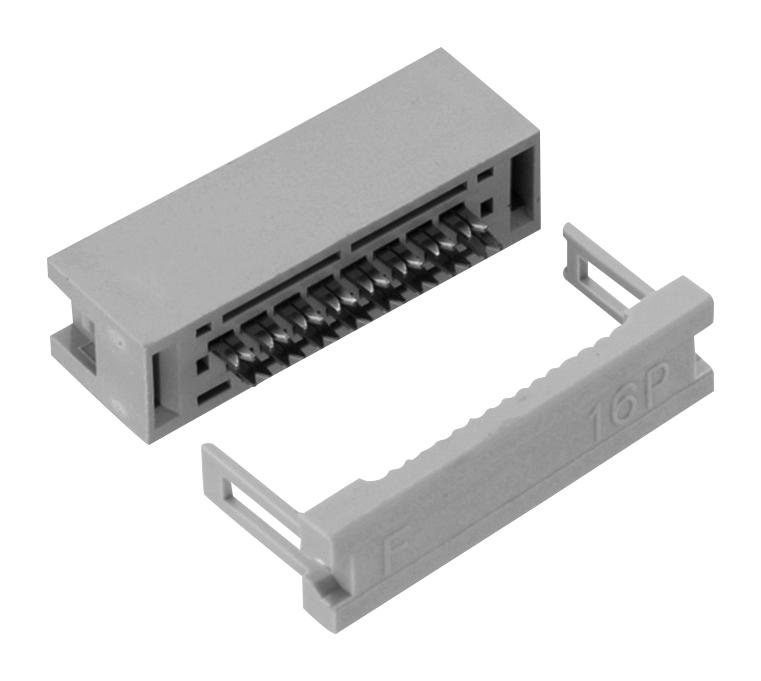

WURTH ELEKTRONIK 61201025821 IDC Connector
The WR-BHD Male IDC Connector from Wurth Elektronik is a high-quality, grey insulator PBT component designed for reliable electrical connections. Featuring copper alloy contacts with selective gold plating, it supports 500 mating cycles and operates within a temperature range of -40°C to +105°C. The connector has a pitch of 2.54 mm, with rated current of 1 A and working voltage of 250 V. Compliant with RoHS and UL approvals, it ensures safety and durability in electronic applications.
WURTH ELEKTRONIK 61201025821 IDC Connector Specifications:
- Pitch: 2.54 mm
- Durability: 500 mating cycles
- Insulator Material: PBT
- Insulator Flammability Rating: UL94V-0
- Insulator Color: Grey
- Contact Material: Copper Alloy
- Contact Plating: Selective Gold
- Contact Type: Stamped
- Operating Temperature: -40°C to +105°C
- Rated Current: 1 A
- Working Voltage: 250 V
- Withstanding Voltage: 500 V, 1 min
- Contact Resistance: 20 milliohms max
- Insulation Resistance: 1000 megaohms min
- Compliance: RoHS and UL approvals
Buy the Wurth Series IDC Connectors: WR-BHD Male IDC Connector 61201025821
Secure your electronic connections with the Wurth Elektronik WR-BHD Male IDC Connector. This high-quality connector offers a 2.54 mm pitch, gold-plated contacts, and operates efficiently within a temperature range of -40°C to +105°C. Its rugged design supports up to 500 mating cycles and complies with RoHS and UL standards for safety and environmental standards. Ideal for industrial, automation, and electronic equipment, this connector guarantees dependable performance, easy installation, and long-lasting durability. Purchase online today and enhance your electronic assembly with confidence.
Get Wurth Elektronik WR-BHD Male IDC Connector today—designed for reliable and durable electrical connections in your projects.
