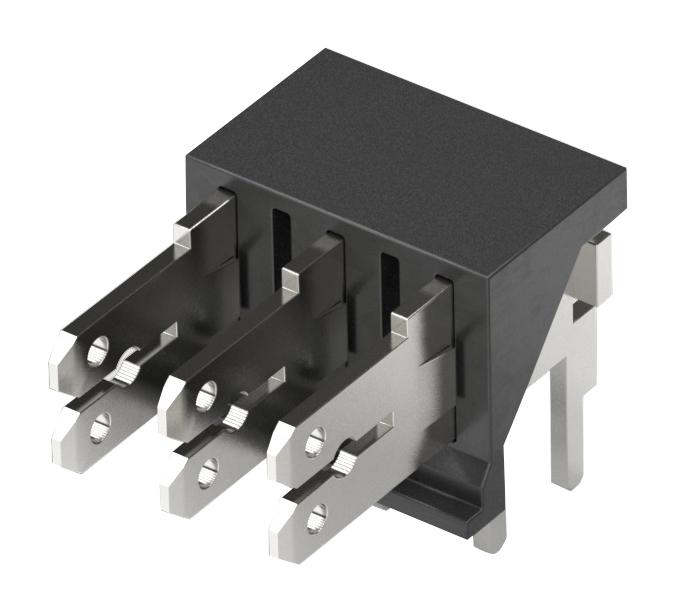

WURTH ELEKTRONIK 638207122004 Electrical Connector
The WURTH ELEKTRONIK right-angled header is a durable, high-quality electrical connector designed for precise and reliable connections in electronic equipment. Featuring a 5.08 mm pitch, it supports up to 16 A current and 300 V working voltage. Made with tin-plated steel contacts and a PC insulator with UL94 V-0 flammability rating, it offers 500 mating cycles and stable performance across temperatures from -30°C to +120°C. Suitable for general electronic applications, this connector ensures long-term durability and dependable electrical contact.
WURTH ELEKTRONIK 638207122004 Electrical Connector Specifications:
- Pitch: 5.08 mm
- Contact Material: Steel with Tin Plating
- Insulator Material: PC, Flammability: UL94 V-0, Color: Black
- Rated Current: 16 A
- Working Voltage: 300 V(AC)
- Durability: 500 Mating cycles
- Operating Temperature: -30°C to +120°C
- Pin to Pin (Middle): 15.24 mm
- Withstanding Voltage: 1600 V(AC) for 14 minutes
- Contact Resistance: 20 mΩ
- Insulation Resistance: 5 MΩ
Buy the Wurth Elektronik Series Connector: 5.08 mm Pitch, 638207122004
Order the Wurth Elektronik right-angled header connector online today. Designed for reliable, high-performance electronic connections, it supports 16 A current and 300 V voltage. With a sturdy PC insulator, steel contacts with tin plating, and a robust construction supporting 500 mating cycles, this connector ensures durability across temperatures from -30°C to +120°C. Ideal for general electronic equipment, it offers easy installation, long-term stability, and a secure, corrosion-resistant connection. Purchase now for dependable performance in your electronic projects.
Get Wurth Elektronik 638207122004 today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 638207122004?
You can click on the BUY or RFQ button to purchase 638207122004 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 638207122004?
You can download the 638207122004 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 638207122004?
WURTH ELEKTRONIK
