WURTH ELEKTRONIK 61201422121 Box Header

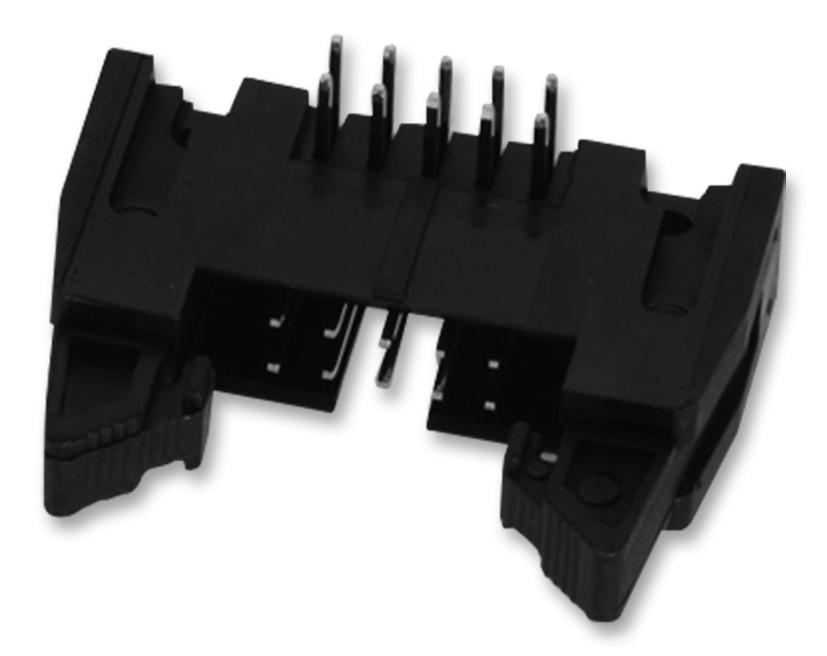

The WR-BHD Male Angled Box Header with Lever from WURTH Elektronik is a 2.54 mm pitch connector designed for reliable electrical connections in electronic assemblies. Constructed with a copper alloy contact material and gold plating, it features a black PBT insulator with UL94 V-0 flammability rating. This connector is rated for 3 A current and 250 VAC voltage, with a durability of 500 mating cycles. Suitable for various electronic equipment, it ensures precise insertion and reliable performance in industrial and consumer device applications, with compliance to RoHS, REACH, and UL standards.
WURTH ELEKTRONIK 61201422121 Box Header Specifications:
- Pitch: 2.54 mm
- Pin count: 14
- Pin to Pin (Middle): 15.24 mm
- Length: 37.28 mm
- Operating Temperature: -40°C to +105°C
- Rated Current: 3 A
- Working Voltage: 250 VAC
- Withstanding Voltage: 500 V (AC, 1 min)
- Contact Resistance: 20 mΩ max.
- Insulation Resistance: 1000 MΩ (min.)
- Insulator Material: PBT
- Insulator Flammability: UL94 V-0
- Insulator Color: Black
- Contact Material: Copper Alloy
- Contact Plating: Gold
- Durability: 500 mating cycles
- Certifications: RoHS, REACH, UL
Buy the WURTH 61201422121 – Reliable Connector for Industrial Applications
Order the WURTH WR-BHD Male Angled Box Header with Lever for your electronic projects today. Designed for reliable and secure connections, this connector features a 2.54 mm pitch, rated for 3 A and 250 VAC, with 500 mating cycles. Its robust construction with gold-plated contacts ensures long-term performance in industrial and consumer electronics. Easy to install and compliant with safety standards like RoHS, REACH, and UL. Perfect for assembling high-quality circuits and ensuring stable electrical performance in various device applications.
Get WURTH 61201422121 today—built for precision and long-lasting durability with a 2.54 mm pitch and gold-plated contacts for reliable connections.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 61201422121?
You can click on the BUY or RFQ button to purchase 61201422121 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 61201422121?
You can download the 61201422121 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 61201422121?
WURTH ELEKTRONIK
