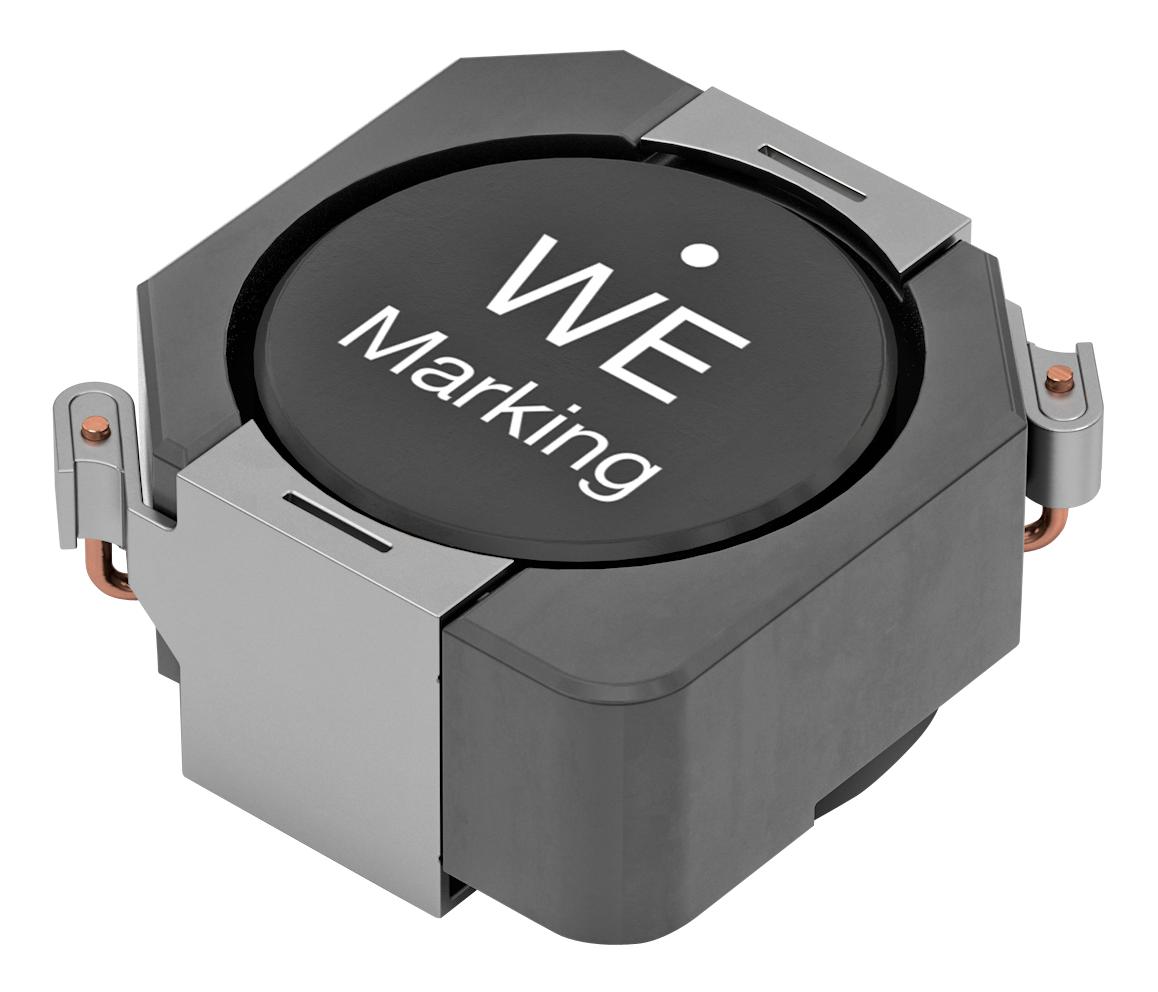

WURTH ELEKTRONIK 7447707102 Shielded Power Inductor
The Würth Elektronik 7447707102 is a shielded power inductor designed for surface mount technology (SMT) applications. It provides excellent inductance stability and low DC resistance, contributing to efficient power delivery in electronic circuits. This component is AEC-Q200 Grade 1 compliant, ensuring reliability in demanding environments. It is suitable for use in DC-DC converters, filtering circuits, and other power management applications. The inductor is not intended for use in safety-critical applications without proper evaluation and agreement with Würth Elektronik.
WURTH ELEKTRONIK 7447707102 Shielded Power Inductor Specifications:
- Inductance L: 1000 µH
- Inductance Tolerance: +/- 20%
- Rated Current: 0.66 A max.
- Saturation Current: 1.1 A typ.
- DC Resistance @ 20°C: 985 mΩ typ.
- DC Resistance @ 20°C (max): 1090 mΩ max.
- Self Resonant Frequency: 1.2 MHz typ.
- Operating Voltage: 120 V max.
- Ambient Temperature: -40 up to +110 °C
- Operating Temperature: -40 up to +150 °C
- Storage Temperature: less than -40°C, less than 75% RH
- Moisture Sensitivity Level: 1
- Halogen Free: Conform [JEDEC JS709B]
- Component Qualification: AEC-Q200 Grade 1
- RoHS Approval: Compliant [2011/65/EU&2015/863]
- REACH Approval: Conform [(EC)1907/2006]
- Packaging Type: Tape & Reel
- Tape Width: 24 mm
- Pull-off Force: 0.1 N - 1.3 N
- Tape Angle: 165° - 180°
Buy the 7447707102 WURTH ELEKTRONIK Shielded Power Inductor | myMectronic
Purchase the Würth Elektronik 7447707102 Shielded Power Inductor securely and reliably through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 7447707102?
You can click on the BUY or RFQ button to purchase 7447707102 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 7447707102?
You can download the 7447707102 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 7447707102?
WURTH ELEKTRONIK
