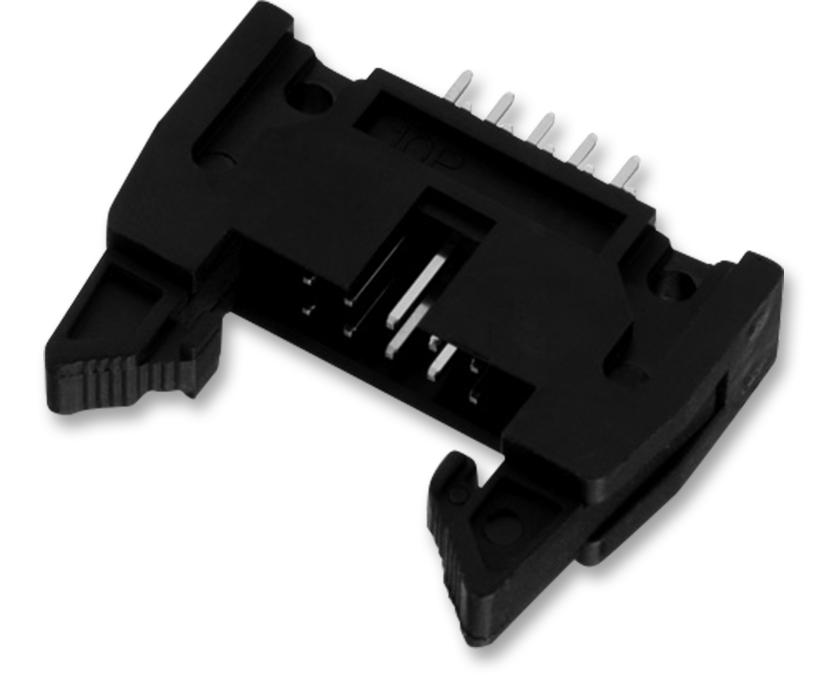

WURTH ELEKTRONIK 61204022021 Male Box Header
The WR-BHD Male Box Header with Lever, featuring a 2.54 mm pitch, is designed for reliable electronic connections in various industrial and electronic applications. Made from copper alloy with gold plating, it offers high durability, operating within -40°C to +105°C temperature range. It complies with RoHS, REACh, Halogen Free, and UL standards, ensuring safety and environmental standards. Suitable for wave soldering, it supports up to 500 mating cycles and has a rated current of 3 A with a working voltage of 250 V. Its insulator is black PBT with UL94V-0 flammability rating, making it ideal for assembly and electronic interconnect solutions.
WURTH ELEKTRONIK 61204022021 Male Box Header Specifications:
- Pitch: 2.54 mm
- Pin to Pin (Middle): 48.26 mm
- Length: 70.3 mm
- Pins: 40
- Operating Temperature Range: -40°C to +105°C
- Rated Current: 3 A
- Working Voltage: 250 V
- Withstanding Voltage: 500 V (1 min)
- Contact Resistance: Max. 20 mo
- Insulation Resistance: Min. 1000 Mo
- Material: Copper Alloy
- Contact Plating: Gold
- Insulator Material: PBT
- Insulator Flammability Rating: UL94V-0
- Insulator Color: Black
- Durability: 500 Mating cycles
- Manufactured for wave soldering
- Approved by UL, RoHS, REACh, Halogen Free standards
Buy the WURTH ELEKTRONIK 61204022021 – Reliable Electrical Connector for Industrial Applications
Enhance your electronic assemblies with the high-quality Male Box Header featuring a 2.54 mm pitch from WURTH ELEKTRONIK. Designed for durability and reliability, it supports 500 mating cycles and handles currents up to 3 A. Made with gold-plated copper alloy and a black PBT insulator, it complies with safety standards including UL94V-0, RoHS, and REACh. Ideal for wave soldering processes, this connector guarantees optimal electrical performance in industrial and electronic equipment. Order online now for fast delivery and secure connections.
Order your WURTH ELEKTRONIK Series61204022021 male box header with lever today and ensure secure, reliable connections in your electronic projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 61204022021?
You can click on the BUY or RFQ button to purchase 61204022021 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 61204022021?
You can download the 61204022021 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 61204022021?
WURTH ELEKTRONIK
