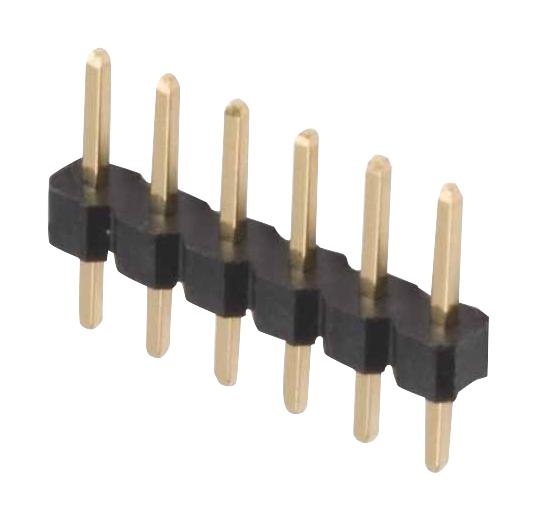

WURTH ELEKTRONIK 61300611121 Pin Header
This 6-position, 1-row pin header features a 2.54mm pitch with a black insulator made of UL94V-0 rated PA6T material. It has gold-plated copper alloy contacts designed with a vertical orientation and through-hole termination, ideal for general electronic and industrial applications. The component supports a rated current of 3A, with a working voltage of 250VAC, and has an insulation resistance exceeding 1000 megaohms. Contact resistance is a maximum of 20 milliohms, and it is compatible with JEDEC lead-free wave soldering profiles, ensuring durability and reliability in demanding environments.
WURTH ELEKTRONIK 61300611121 Pin Header Specifications:
- Number of positions: 6
- Pitch: 2.54 mm
- Contact Material: Copper Alloy, gold-plated
- Insulator Material: PA6T
- Flammability Rating: UL94 V-0
- Contact Type: Stamped
- Operating Temperature: -40°C to +105°C
- Rated Current: 3 A
- Working Voltage: 250 V AC
- Contact Resistance: 20 milliohms max
- Insulation Resistance: > 1000 megaohms
- Soldering Profile: JEDEC lead-free wave soldering compatible
- Compliance: RoHS, REACH, UL
Buy the Wurth 61300611121 – Reliable Pin Header for Industrial Applications
Order the Wurth 61300611121 pin header online today—engineered for durability in industrial environments. With gold-plated contacts, excellent insulation resistance, and compatibility with lead-free soldering, this component ensures reliable electrical connections. Perfect for versatile electronic assemblies, it supports 3A current and 250VAC operation, making it ideal for manufacturing, automation, and control systems. Purchase now to secure a trusted component that guarantees performance, long-term stability, and seamless integration into your projects.
Get Wurth 61300611121 today—built for industrial reliability and precision connectivity.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 61300611121?
You can click on the BUY or RFQ button to purchase 61300611121 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 61300611121?
You can download the 61300611121 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 61300611121?
WURTH ELEKTRONIK
