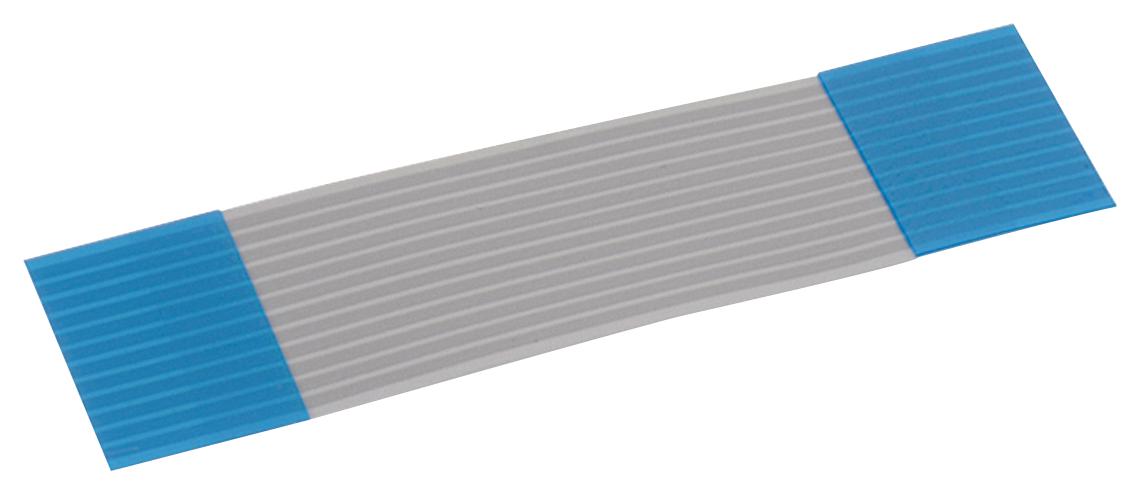

WURTH ELEKTRONIK 686616152001 Flat Flexible Cable
The WR-FFC Flat Flexible Cable is a durable, high-quality interconnect solution designed for electronic equipment. Made with PET insulator and copper conductors, it features a 1.00 mm pitch, 15 mm total length, and a conductor width of 0.7 mm. The cable supports up to 1 A current, operates between -30°C to +105°C, and offers excellent flexibility and moisture resistance. Approved according to UL and IEC standards, this cable ensures reliable performance in various applications, including consumer electronics and industrial devices.
WURTH ELEKTRONIK 686616152001 Flat Flexible Cable Specifications:
- Pitch P 1 mm ±0.08mm
- Total Length 15 mm ±0.1mm
- Width 17 mm ±0.1mm
- Margin M 1 mm ±0.12mm
- Conductor Width C 0.7 mm ±0.03mm
- Conductor Thickness ct 0.085 mm ±0.01mm
- Support Tape Length 1 D1 10 mm ±2mm
- Support Tape Length 2 D2 10 mm ±2mm
- Strip Length 1 s1 5 mm ±1mm
- Strip Length 2 s2 5 mm
- Support Tape Thickness st 0.225 mm ±0.01mm
- Insulation Thickness i 0.043 mm
- Material Insulator PET (White), Tape PET (Blue)
- Rated Current 1 A maximum
- Working Voltage 60 V
- Insulation Resistance 500 V (50Ω) 1000 MΩ minimum
- Withstanding Voltage 500 V AC for 1 min
- Conductor Resistance 1.09 Ω maximum
- Contact Resistance 20 mΩ maximum
- Operating Temperature -30°C to +105°C
- Heat Resistance 110°C for 96 hours
- Flammability UL SUB.758
- Mechanical durability 20 mating cycles, flexing 180° 20 times, abrasion 10,000 cycles
Buy the Buy WURTH ELECTRONIK Flat Flexible Cable Part Number 686616152001 Online
Discover the high-quality Flat Flexible Cable designed for electronic applications. With a 1.00 mm pitch, 15 mm length, and copper conductors, this cable offers excellent flexibility, durability, and moisture resistance. Rated for up to 1 A and operating between -30°C to +105°C, it is ideal for use in consumer electronics, industrial machinery, and communication devices. UL listed and IEC certified, it guarantees safety and reliable performance in demanding environments. Easily purchased online for seamless integration into your projects.
Order your WURTH ELECTRONIK Flat Flexible Cable 686616152001 today and ensure reliable, flexible connections for your electronic projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 686616152001?
You can click on the BUY or RFQ button to purchase 686616152001 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 686616152001?
You can download the 686616152001 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 686616152001?
WURTH ELEKTRONIK
