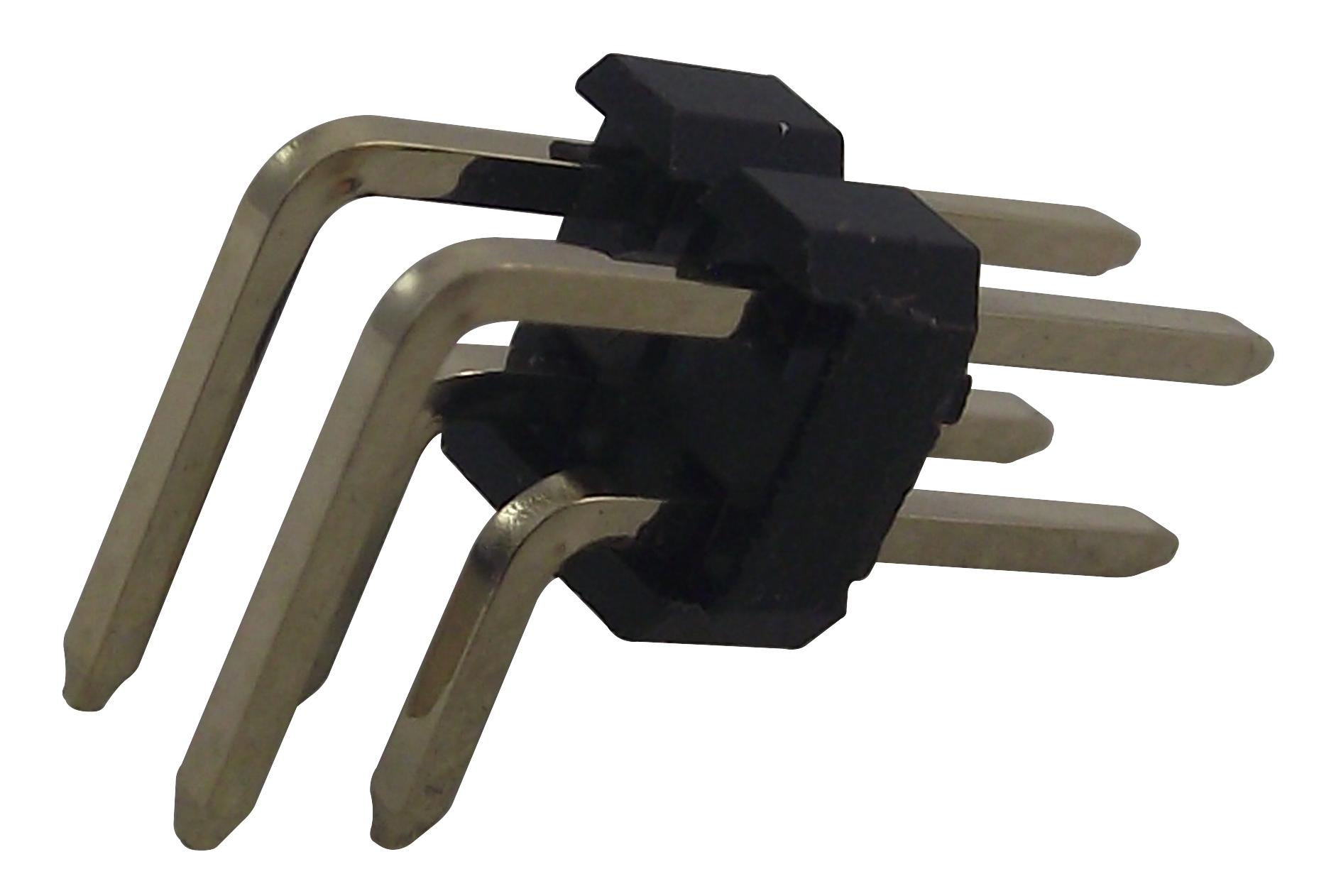

WURTH ELEKTRONIK 61300621021 Dual Pin Header
The WR-PHD Angled Dual Pin Header is a 2.54 mm pitch electronic connector designed for reliable connections in electronic assemblies. Constructed with copper alloy contacts plated with gold, it features an insulator made of PABT with UL94V-0 flammability rating, and is rated for a maximum of 3 A current at 250 V AC. Operating temperature ranges from -40°C to +105°C, supporting up to 25 mating cycles. Suitable for general electronic equipment, it guarantees high durability, stable electrical contact, andRoHS compliance for environmentally conscious manufacturing. Its compact design allows ease of use in densely packed circuit boards.
WURTH ELEKTRONIK 61300621021 Dual Pin Header Specifications:
- Pitch: 2.54 mm
- Rated Current: 3 A
- Working Voltage: 250 V AC
- Operating Temperature: -40°C to +105°C
- Mating Cycles: 25
- Contact Material: Copper Alloy
- Contact Plating: Gold
- Insulator Material: PABT
- Insulator Flammability Rating: UL94V-0
- Insulator Color: Black
- Soldering Profile: Wave Soldering, Pb-Free, Sn-Pb configurations as per standards
- Storage Conditions: Use within 12 months, avoid direct sunlight, store in original packaging
- Compliance: RoHS, REACH, UL
Buy the Buy WURTH ELEKTRONIK Dual Pin Header Part Number 61300621021 Online
Explore the convenience of purchasing the WURTH ELEKTRONIK Dual Pin Header online, designed for dependable circuit connections. With a 2.54 mm pitch, gold-plated contacts, and high durability supporting 25 mating cycles, this connector ensures optimal electrical performance in various electronic assemblies. Certified with RoHS, UL, and REACH standards, it is suitable for a wide range of applications from industrial to consumer electronics. Order now to enhance your designs with a premium, easy-to-integrate component that guarantees long-term reliability and compliance.
Buy WURTH ELEKTRONIK 61300621021 now and experience reliable connectivity and high-performance electrical contacts for your electronic projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 61300621021?
You can click on the BUY or RFQ button to purchase 61300621021 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 61300621021?
You can download the 61300621021 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 61300621021?
WURTH ELEKTRONIK
