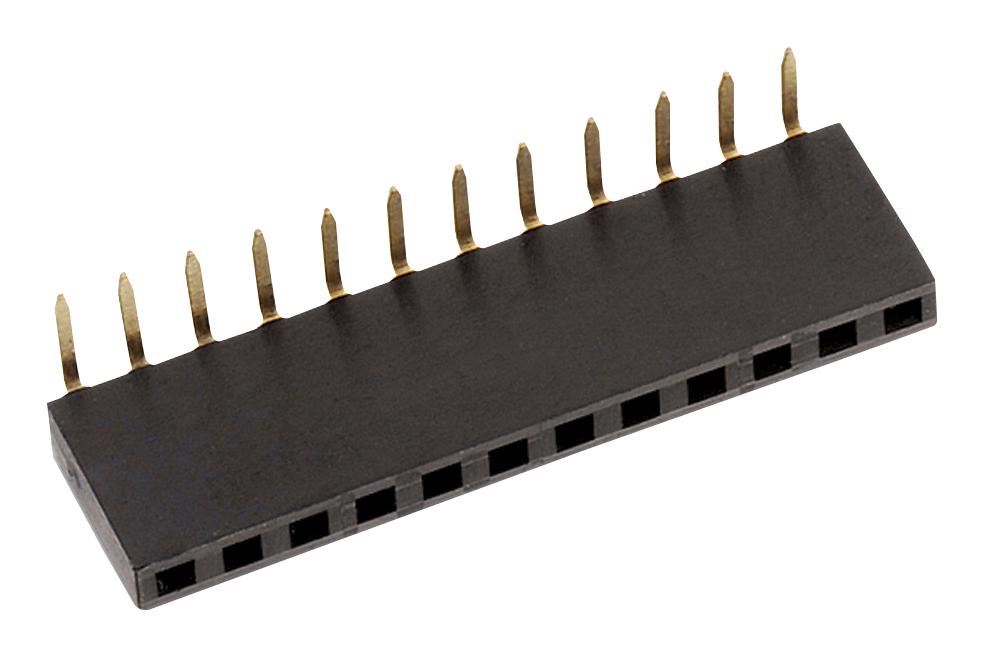

WURTH ELEKTRONIK 613010143121 Socket Header
The WR-PHD Angled Socket Header is a reliable electrical connector designed for efficient signal and power transfer in electronic assemblies. Made from durable copper alloy with gold plating, it features a pitch of 2.54 mm, with 10 pins and a length of 25.9 mm. It complies with UL94V-0 flammability standards and withstands temperatures from -40°C to +105°C. Suitable for wave soldering, it offers a rated current of 3A, and a working voltage of 250V, making it ideal for industrial, automation, and PCB connector applications. It's certified compliant with RoHS and REACH standards and is intended for professional electronic assembly use.
WURTH ELEKTRONIK 613010143121 Socket Header Specifications:
- Pitch: 2.54 mm
- Pins: 10
- Pin to Pin (Middle): 22.86 mm
- Length: 25.9 mm
- Material: Copper Alloy
- Contact Plating: Gold
- Insulator Material: PBT
- Insulator Flammability Rating: UL94V-0
- Operating Temperature: -40°C to +105°C
- Rated Current: 3 A
- Working Voltage: 250 V
- Withstanding Voltage: 500 V for 1 min
- Contact Resistance: Max 20 mΩ
- Insulation Resistance: Min 1000 MΩ
- Durability: 25 mating cycles
- Soldering: Wave soldering compatible, classification: Pb-Free and Sn-Pb
Buy the WURTH ELEKTRONIK 613010143121 – Reliable PCB Connector for Industrial Applications
Order the WURTH ELEKTRONIK Socket Header online today and elevate your electronic assembly process. Designed with precision and durability, this 2.54 mm pitch connector with 10 gold-plated contacts ensures secure and efficient connections in industrial, automation, and PCB applications. Its UL94V-0 flammability rating and temperature resilience from -40°C to +105°C make it versatile for various environments. With a rated current of 3A and compliance to RoHS and REACH standards, it’s the ideal choice for professional engineers seeking high-quality connectors for reliable performance.
Buy WURTH ELEKTRONIK 613010143121 angled socket header now and experience unmatched reliability and performance for your electronic projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 613010143121?
You can click on the BUY or RFQ button to purchase 613010143121 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 613010143121?
You can download the 613010143121 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 613010143121?
WURTH ELEKTRONIK
