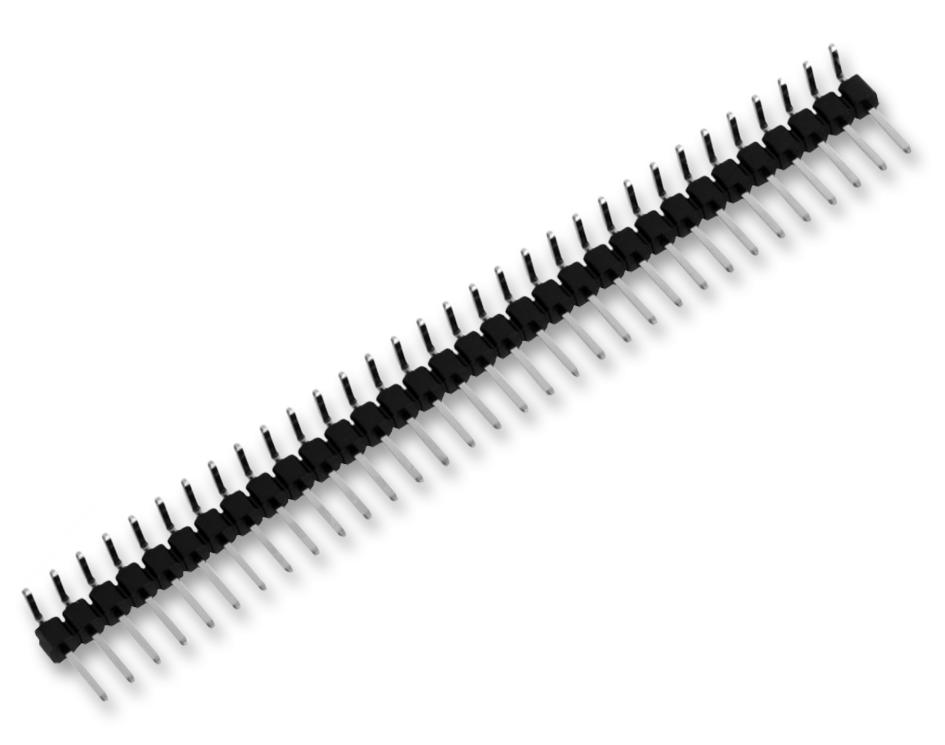

WURTH ELEKTRONIK 61301211021 Pin Header
The WR-PHD Angled Pin Header is a high-quality electrical connector designed for reliable PCB connections in electronic equipment. Featuring gold-plated copper alloy contacts, UL94V-0 rated insulator material in black, and a pitch of 2.54mm, it offers durability for up to 25 mating cycles. Operating within -40°C to +105°C, it supports a rated current of 3A at 250V, with a contact resistance max of 20 milliohms. Suitable for various electronic applications requiring secure and stable connections, it complies with RoHS, REACH, and UL standards, ensuring safety and environmental compatibility.
WURTH ELEKTRONIK 61301211021 Pin Header Specifications:
- Pins: 12
- Pin to Pin (Middle): 27.94 mm
- Length: 30.48 mm
- Pitch: 2.54 mm
- Durability: 25 mating cycles
- Material: Copper Alloy with Gold Plating
- Insulator Material: PABT
- Insulator Flammability Rating: UL94V-0
- Insulator Color: Black
- Operating Temperature: -40°C to +105°C
- Rated Current: 3 A
- Working Voltage: 250 V
- Withstanding Voltage: 500 V for 1 min
- Contact Resistance: Max 20 milliohms
- Insulation Resistance: Min 1000 Megaohms
- Certifications: RoHS, REACH, UL
Buy the Wurth Series PHD: Angled Pin Header 61301211021
Order the Wurth 61301211021 angled pin header online today for your electronic projects. Designed with gold-plated contacts and a 2.54mm pitch, this connector offers excellent conductivity and mechanical stability. Suitable for applications requiring high safety standards, it supports up to 25 mating cycles and operates in temperatures from -40°C to +105°C. Certified RoHS, REACH, and UL compliant, ensuring safety and environmental friendliness. Enhance your electronic assembly with this durable and reliable connector—shop now for quick and secure delivery.
Get Wurth 61301211021 angled pin header today—built for reliable PCB connections and long-lasting durability.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 61301211021?
You can click on the BUY or RFQ button to purchase 61301211021 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 61301211021?
You can download the 61301211021 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 61301211021?
WURTH ELEKTRONIK
