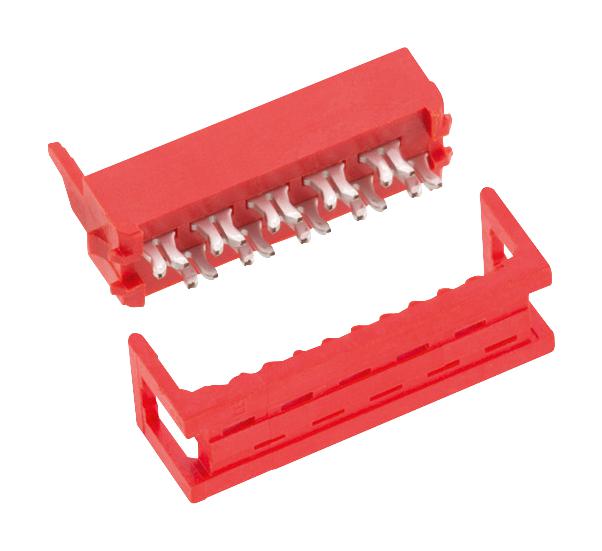

WURTH ELEKTRONIK 690157002672 IDC Connector
The WR-MM Male IDC Connector is a high-quality electrical component designed for versatile electronic applications. Made with durable phosphor bronze contacts plated with matte tin over nickel, it offers reliable performance with a rated current of 1A per pin and a working voltage of 250V. Its insulator is constructed from flame-retardant PBT material, colored red for easy identification. Capable of withstanding temperatures from -40°C to +105°C, it endures up to 25 mating cycles, ensuring long-term durability in various environments. This connector is RoHS and REACH compliant, suitable for industrial and automation use with precise dimensions and construction for secure connectivity.
WURTH ELEKTRONIK 690157002672 IDC Connector Specifications:
- Insulator Material: PBT
- Insulator Flammability Rating: UL94V-0
- Insulator Color: Red
- Contact Material: Phosphor Bronze
- Contact Plating: Matte Tin over Nickel
- Rated Current: 1A per pin
- Working Voltage: 250V
- Withstanding Voltage: 500V (1 min)
- Contact Resistance: Max. 10 mo
- Insulation Resistance: Min. 1000 Mo
- Operating Temperature: -40°C to +105°C
- Durability: 25 mating cycles
- Pitch: 2.54 mm
- Cable AWG: 28
- Cable Pitch: 1.27 mm
- Storage Conditions: Use within 12 months, avoid exposure to sunlight
- Certifications: RoHS, REACH, cULus
Buy the WURTH 690157002672 – Reliable IDC Connector for Industrial Applications
Discover the high-performance IDC male connector from WURTH. Designed with durable materials and precise dimensions, it ensures secure connections for industrial, automation, and electronic systems. Featuring a robust PBT insulator, tin-plated contacts, and high temperature tolerance, this connector supports up to 25 mating cycles and withstands voltages up to 250V. Ideal for various environments, it complies with RoHS and REACH standards. Order now and enhance your electronic assemblies with this durable, reliable connector ensuring long-term performance and safety.
Buy WURTH 690157002672 now and experience unmatched reliability and performance in electronic connectivity solutions.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 690157002672?
You can click on the BUY or RFQ button to purchase 690157002672 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 690157002672?
You can download the 690157002672 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 690157002672?
WURTH ELEKTRONIK
