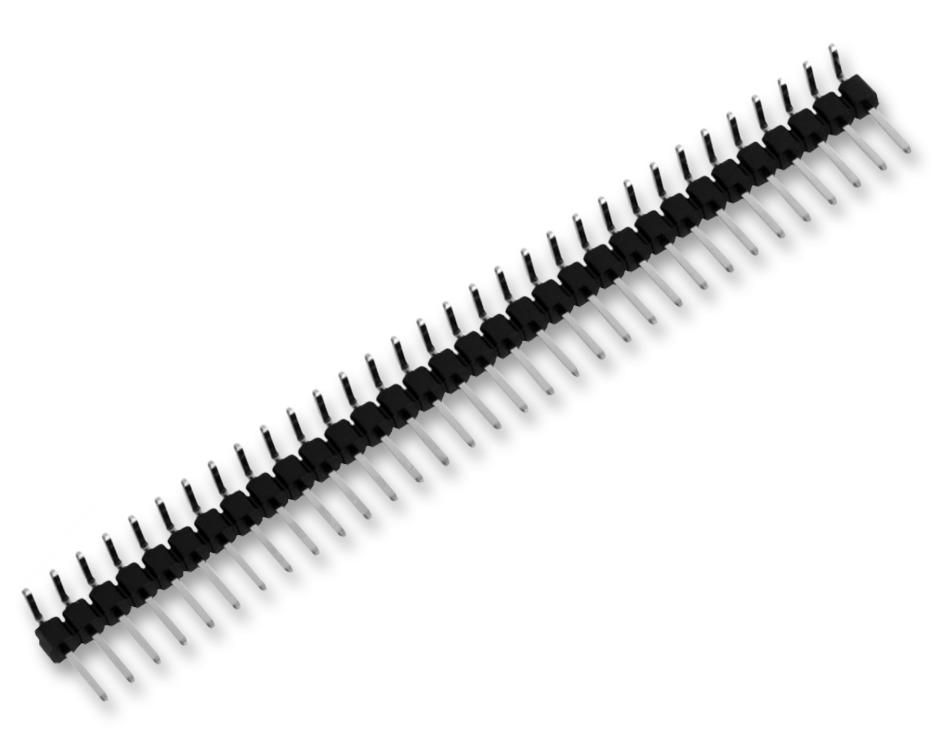

WURTH ELEKTRONIK 61301811021 Pin Header
The WR-PHD Angled Pin Header is a reliable electronic connector designed for modular PCB assembly and interconnections in electronic equipment. Featuring a pitch of 2.54 mm and gold-plated copper alloy contacts, it ensures durable electrical performance with 25 mating cycles and rated for 3 A at 250 V. Its insulator made of UL94V-0 rated PABT in black provides excellent flammability safety and insulation. Suitable for applications requiring stable, high-quality connections, this connector performs efficiently in operating temperatures from -40°C to +105°C, making it ideal for automation, industrial, and electronic device assembly businesses.
WURTH ELEKTRONIK 61301811021 Pin Header Specifications:
- Pitch: 2.54 mm
- Pins: 18
- Pin to Pin (Middle): 43.18 mm
- Length: 45.72 mm
- Material: Copper Alloy
- Contact Plating: Gold
- Contact Type: Stamped
- Insulator Material: PABT
- Insulator Flammability Rating: UL94V-0
- Color: Black
- Rated Current: 3 A
- Working Voltage: 250 V
- Withstanding Voltage: 500 V for 1 min
- Contact Resistance: Max. 20 mΩ
- Insulation Resistance: Min. 1000 MΩ
- Durability: 25 mating cycles
- Operating Temperature: -40°C to +105°C
Buy the Wirth Angled Pin Header – Reliable Electronic Connector for Industrial Applications
Order the high-quality Wirth Elektronik WR-PHD Angled Pin Header now and enhance your electronic assembly process. With robust gold-plated contacts and UL94V-0 rated insulation, this connector guarantees reliable connections in industrial, automation, and manufacturing environments. Its durable design supports 25 mating cycles, rated for 3A and 250V, making it suitable for demanding applications. Available for online purchase, it ensures fast delivery and excellent compatibility with a wide range of electronic components, providing peace of mind and high performance for your projects.
Get Wirth Elektronik WR-PHD Angled Pin Header today—built for precision and long-lasting durability in complex electronic systems.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 61301811021?
You can click on the BUY or RFQ button to purchase 61301811021 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 61301811021?
You can download the 61301811021 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 61301811021?
WURTH ELEKTRONIK
