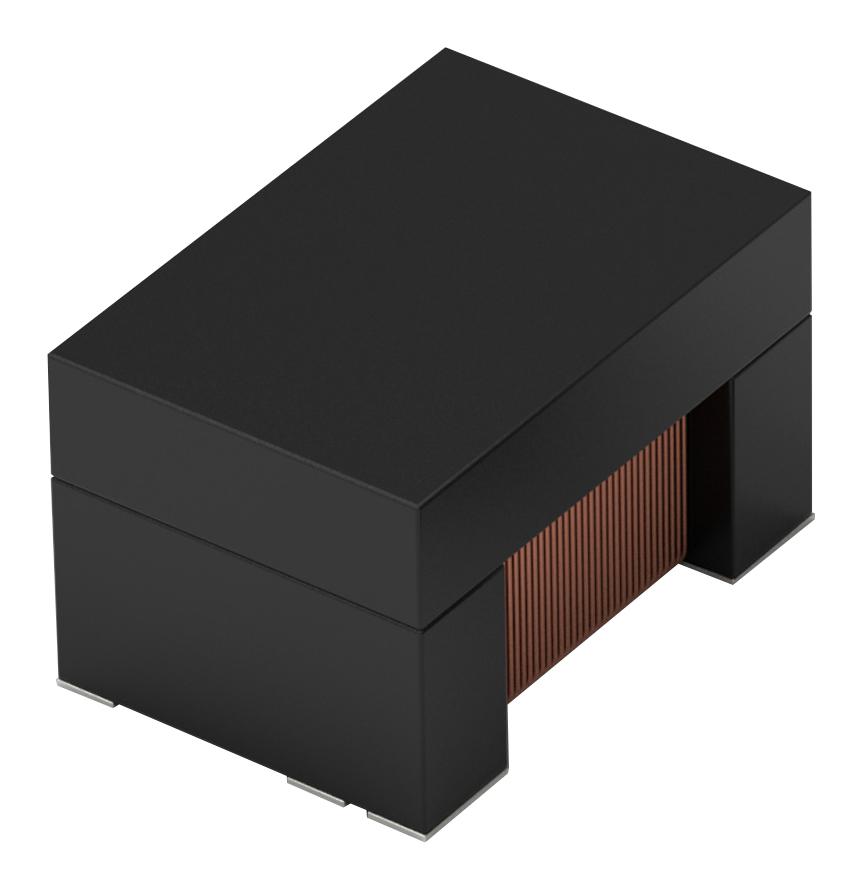

WURTH ELEKTRONIK 74930100 Signal Transformer
This ultra-compact signal transformer is designed for high-frequency applications, featuring an inductance of 120 uH and a turns ratio of 1-2. It complies with international standards including RoHS, REACH, and halogen-free certifications. Suitable for telecommunications and signal processing, it offers excellent electrical and thermal stability with a temperature rating up to +105°C. The transformer is packaged in accordance with IEC 60286-3:2013 standards, ensuring reliable performance in various electronic systems, and it is ideal for use in miniature electronic devices requiring high-frequency signal isolation and transfer.
WURTH ELEKTRONIK 74930100 Signal Transformer Specifications:
- Inductance: 120 uH | min
- Turns Ratio: 1-2
- DC Resistance: 1.39 Ω | max at 100 kHz/100 mV
- Insertion Loss: 0.05 dB max (1-100 MHz), 0.1 dB max (100-250 MHz), 0.25 dB max (250-600 MHz)
- Return Loss: -19 dB min (1-100 MHz), -14 dB min (100-250 MHz), -11 dB min (250-400 MHz), -8 dB min (400-600 MHz)
- Insulation Test Voltage: 1500 V min for 1 min
- Operating Temperature: -40°C to +105°C
- Storage Conditions: < 40°C, 75% RH, in original packaging for up to 12 months
- Compliance: RoHS, REACH, Halogen-free according to IEC 61249-2-21, JEDEC JS709B
- Package Standard: IEC 60286-3:2013, Tape and Reel packaging
Buy the Buy WURTH ELEKTRONIK Signal Transformer Part Number 74930100 Online
Order the WURTH ELEKTRONIK 74930100 signal transformer online today to ensure high-frequency performance and reliable signal isolation. This miniature device offers excellent electrical stability, meeting international standards such as RoHS, REACH, and IEC. Its 120 uH inductance and optimal turns ratio make it perfect for telecommunications, signal processing, and other electronic applications requiring precision and durability. With easy online purchase, fast delivery, and technical support, enhance your electronic system performance now by choosing this dependable transformer product designed for modern high-frequency applications.
Buy WURTH ELEKTRONIK 74930100 transformer now and experience unmatched high-frequency signal transfer and reliability in your electronic projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 74930100?
You can click on the BUY or RFQ button to purchase 74930100 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 74930100?
You can download the 74930100 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 74930100?
WURTH ELEKTRONIK
