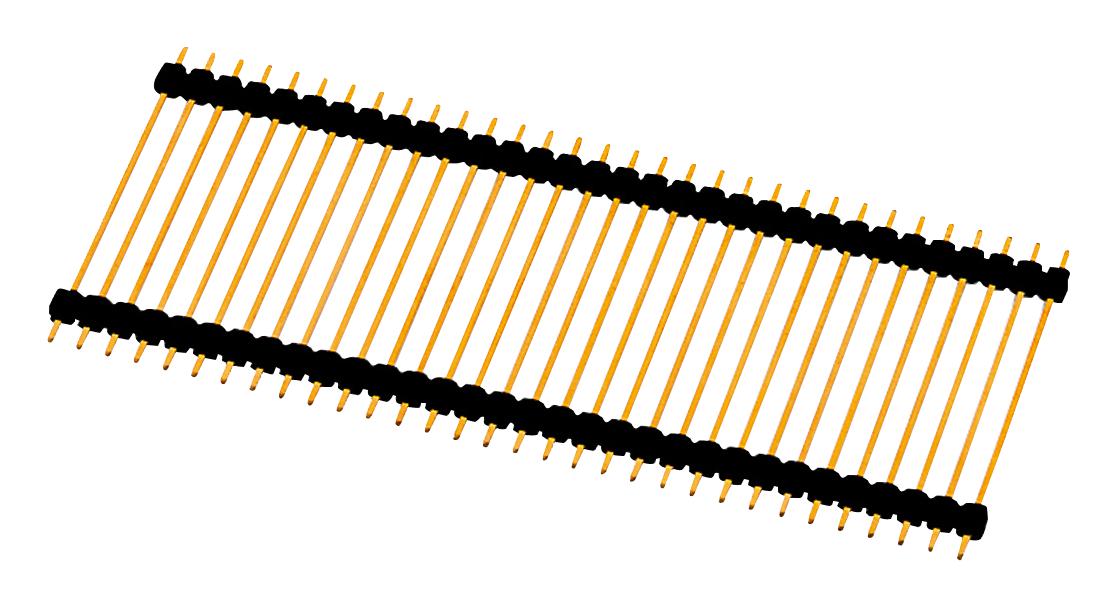

WURTH ELEKTRONIK 61303218421 Board Stacker
Wurth Elektronik's WR-PHD Board Stacker is a reliable, high-quality connector designed for seamless stacking in electronic assemblies. Featuring durable copper alloy contacts with gold plating, it offers excellent electrical performance with a rated current of 3 A and an operating voltage of 250 V. The insulator is made from flame-retardant PABT material, rated UL94V-0, ensuring safety. With a pitch of 2.54 mm and suitability for wave soldering, this component supports up to 25 mating cycles, ideal for industrial electronic applications requiring stable, durable connections.
WURTH ELEKTRONIK 61303218421 Board Stacker Specifications:
- Pitch P 2.54 mm
- Durability 25 Mating cycles
- Insulator Material PABT
- Insulator Flammability Rating UL94V-0
- Insulator Color Black
- Contact Material Copper Alloy
- Contact Plating Gold
- Contact Type Stamped
- Operating Temperature -40°C to +105°C
- Rated Current 3 A
- Working Voltage 250 V
- Withstanding Voltage 500 V (1 min)
- Contact Resistance 20 mΩ max at 20 mA
- Insulation Resistance 1000 MΩ min
- Soldering Profile Compatible with wave soldering (Pb-Free and Sn-Pb)
- Packaging includes Bag and Carton
Buy the Wurth Elektronik WR-PHD Board Stacker – Reliable Connector for Industrial Applications
Enhance your electronic projects with the reliable Wurth Elektronik WR-PHD Board Stacker. Designed for stable stacking connections, it features gold-plated copper alloy contacts rated at 3 A and 250 V. The insulator, made from flame-retardant PABT with UL94V-0 rating, ensures safety. Its high durability of 25 mating cycles and compatibility with wave soldering make it perfect for industrial and automation applications. Purchase online today to ensure secure, durable, and efficient connections in your manufacturing or repair environments.
Buy Wurth Elektronik WR-PHD Board Stacker now and experience unmatched reliability and performance in your electronic assemblies.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 61303218421?
You can click on the BUY or RFQ button to purchase 61303218421 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 61303218421?
You can download the 61303218421 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 61303218421?
WURTH ELEKTRONIK
