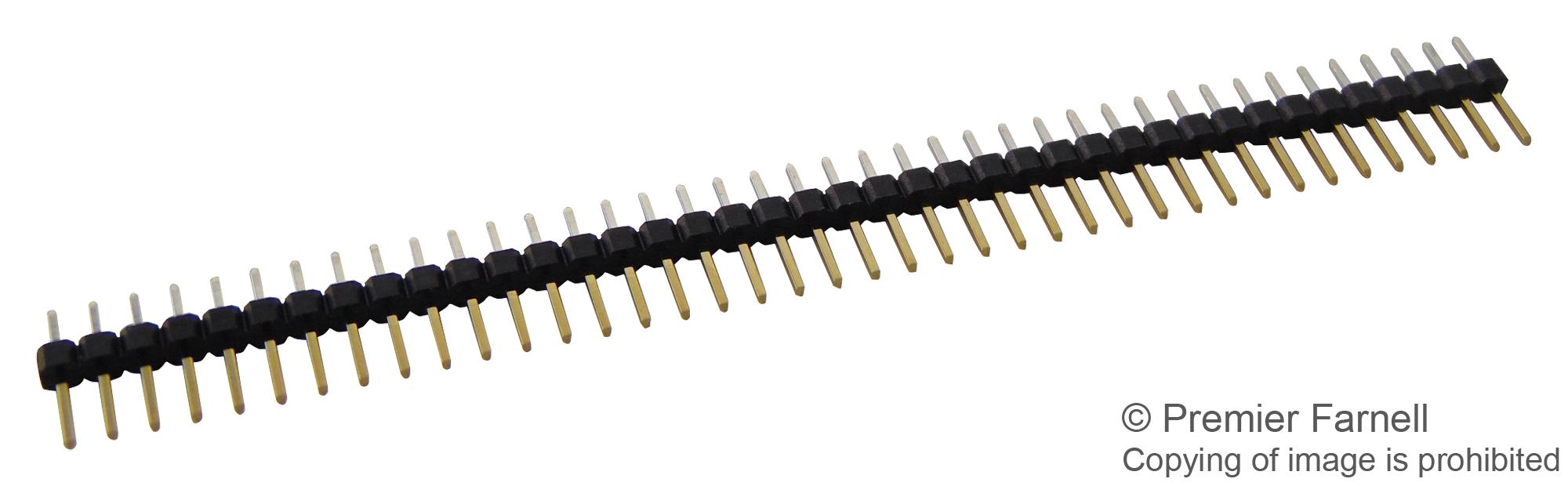

WURTH ELEKTRONIK 61304011121 Pin Header
The part number 61304011121 is a black Through-Hole pin header with a PBT insulator and stamped, gold-plated copper contacts. Rated for 3A current and 250VAC, it features an insulation resistance of over 1000MΩ, contact resistance max 20mΩ, and a temperature range of -40°C to +125°C. Suitable for computer systems, peripherals, and electronic modules requiring reliable, high-quality connections, it complies with UL94 V-0 flammability rating. Ideal for applications demanding high durability and dependable electrical performance in demanding environments.
WURTH ELEKTRONIK 61304011121 Pin Header Specifications:
- Material: Copper Alloy with Gold Plating
- Insulator Material: PBT
- Flammability Rating: UL94 V-0
- Rated Current: 3 A
- Working Voltage: 250 V AC
- Insulation Resistance: > 1000 MΩ
- Contact Resistance: Max 20 mΩ
- Operating Temperature Range: -40°C to +125°C
- Contact Type: Stamped
- Pin Pitch: 2.54 mm
Buy the WURTH 61304011121 – Reliable Pin Header for Industrial Applications
Get the WURTH 61304011121 pin header now and secure high-quality electrical connections for your electronic assemblies. This black Through-Hole connector with gold-plated contacts offers excellent durability and corrosion resistance, rated for 3A and 250VAC. Its wide operating temperature range from -40°C to +125°C makes it suitable for demanding environments like industrial automation, computer hardware, and peripheral devices. Easy to install and compatible with standard 2.54 mm pitch headers, it ensures reliable performance in various electronic and electrical applications.
Order your WURTH Series 61304011121 pin header today and ensure robust, reliable connections for your electronic projects and industrial equipment.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 61304011121?
You can click on the BUY or RFQ button to purchase 61304011121 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 61304011121?
You can download the 61304011121 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 61304011121?
WURTH ELEKTRONIK
