WURTH ELEKTRONIK 744252510 Common Mode Filter

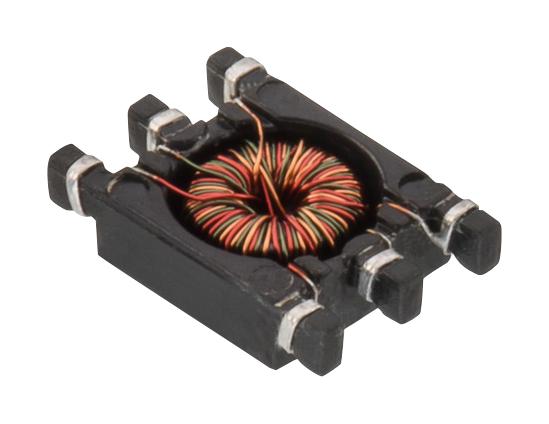

The WE-SL3 SMD Common Mode Line Filter is designed to suppress electromagnetic interference in electronic circuits, ensuring compliance with EMC standards. It features a compact design with a maximum impedance of 3300 ohms at 100 kHz and rated voltage of 80V. The filter provides high inductance values, low DC resistance of 0.25 ohms, and operates efficiently within a temperature range of -40°C to +125°C. Suitable for industrial and electronic equipment, it offers reliable filtering crucial for high-frequency applications and noise reduction in sensitive circuits.
WURTH ELEKTRONIK 744252510 Common Mode Filter Specifications:
- Number of windings N 2
- Inductance 51 μH ±50%/-30%
- Maximum Impedance 3300 Ω at 100 kHz
- Rated Voltage 80 V max.
- DC Resistance 0.25 Ω max.
- Leakage Inductance 64 nH at 1 mA
- Test Voltage 500 VAC max.
- Operating Temperature -40°C to +125°C
- Storage Temperature -20°C to +40°C, 75% RH max.
- Material and Dimensions Refer to datasheet for detailed physical specifications.
Buy the Buy WE-WE-SL3 SMD Common Mode Line Filter Part Number 744252510 Online
Enhance your electronic system with the WE-WE-SL3 SMD Common Mode Line Filter. Offering superior EMI filtering with a compact design, rated at 80V and capable of withstanding temperatures up to +125°C, it ensures your device complies with electromagnetic compatibility standards. Its low resistance and high impedance make it ideal for noise reduction in sensitive circuits. Easily replaceable, reliable, and suitable for industrial, automation, and electronic equipment, this filter is an essential component for creating interference-free, high-performance electronic systems.
Get WE-WE-SL3 SMD Common Mode Line Filter today—built for EMI suppression, high reliability, and consistent performance in industrial electronic applications.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 744252510?
You can click on the BUY or RFQ button to purchase 744252510 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 744252510?
You can download the 744252510 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 744252510?
WURTH ELEKTRONIK
