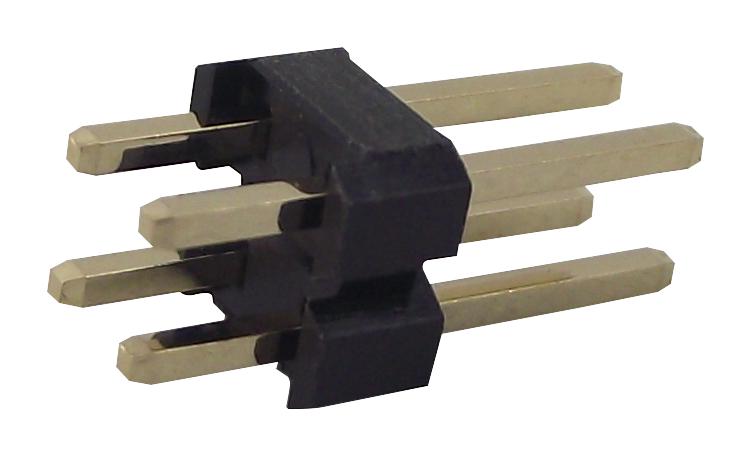

WURTH ELEKTRONIK 61304421121 Dual Pin Header
The WR-PHD Dual Pin Header is a reliable, high-quality electronic connector designed for versatile use in industrial and electronic equipment. With a pitch of 2.54 mm and durability of 25 mating cycles, it features gold-plated copper alloy contacts and a black PABT insulator rated UL94V-0. Suitable for applications requiring a working voltage of 250 V and a rated current of 3 A, this component ensures stable electrical connection in wave soldering processes. Its robust construction and precise pin-to-pin spacing make it ideal for industrial electronics and automation systems, adhering to international safety standards.
WURTH ELEKTRONIK 61304421121 Dual Pin Header Specifications:
- Pitch: 2.54 mm
- Pin to Pin (Middle): 58.34 mm
- Length: 55.88 mm
- Material: Copper Alloy
- Contact Plating: Gold
- Insulator: PABT, Black, UL94V-0
- Operating Temperature: -40°C to +105°C
- Rated Current: 3 A
- Working Voltage: 250 V
- Contact Resistance: Max. 20 mΩ
- Insulation Resistance: Min. 1000 MΩ
- Durability: 25 mating cycles
- Soldering Profile: Wave Soldering, Pb-Free, Sn-Pb compatible
- RoHS & REACH compliant
- UL Approval: Yes
Buy the Wurth Elektronik WR-PHD – Reliable Dual Pin Header for Industrial Applications
Experience dependable electrical connections with the Wurth Elektronik WR-PHD Dual Pin Header, designed for industrial automation, electronics, and high-reliability systems. Featuring a 2.54 mm pitch, gold-plated contacts, and UL94V-0 rated insulator, it ensures optimal performance with up to 25 mating cycles. Its precise dimensions and robust construction make it suitable for wave soldering and various manufacturing environments. Purchase online now to integrate this high-quality connector into your electronic assemblies, ensuring safety, durability, and excellent electrical performance for your industrial and automation needs.
Order your Wurth Elektronik WR-PHD Dual Pin Header today and secure high-reliability connections for your industrial and electronic projects.
