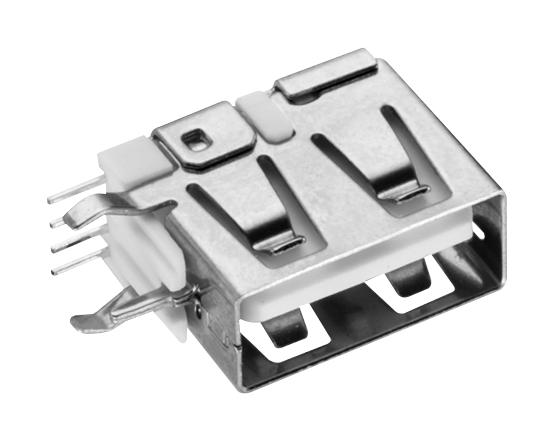

WURTH ELEKTRONIK 614004184726 USB Type A Connector
This USB Type A connector features a right-up orientation with a short size profile, constructed with a PBT insulator, copper alloy contacts plated with gold over tin, and a brass cover with Ni plating. Designed for reliable performance, it supports a maximum current of 2A, working voltage up to 30 VAC, and withstands voltage of 500 VAC. Suitable for general electronic equipment, it complies with RoHS and lead-free standards, with a robust mechanical and electrical design supporting at least 5,000 mating cycles, making it ideal for various industrial and consumer applications.
WURTH ELEKTRONIK 614004184726 USB Type A Connector Specifications:
- Material: PBT insulator, copper alloy contacts, brass cover
- Contact Plating: Gold over Tin
- Insulation Resistance: > 1000 MΩ
- Contact Resistance: 30 mΩ max
- Current Rating: 2A max
- Working Voltage: 30 VAC max
- Withstanding Voltage: 500 VAC/min
- Operating Temperature: -40°C to +85°C
- Number of Mating Cycles: 5,000
- PCB Thickness: 1.2 mm recommended
- Insertion Force: 35.0 N max
- Extraction Force: 10.0 N min
- RoHS and Lead-Free Compliant
- Packaging: Tray, 4860 pcs per carton
- Dimensions: Compact size suitable for general use
- Soldering Method: JEDEC lead-free wave soldering
Buy the Wurth Series USB Type A Short Size Connector: 614004184726
Enhance your electronic assemblies with this durable USB Type A connector featuring gold-tin contacts and a robust PBT insulator. Designed for high reliability, it supports over 5,000 mating cycles and is RoHS compliant. Its compact size makes it ideal for various applications from consumer electronics to industrial devices. With a maximum current of 2A and voltage capacity up to 30 VAC, it guarantees safe and reliable connectivity. Purchase online today for fast delivery and ensure your projects perform seamlessly with this high-quality connector.
Buy Wurth USB Type A Short Size Connector now and experience unmatched reliability and performance in your electronic projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 614004184726?
You can click on the BUY or RFQ button to purchase 614004184726 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 614004184726?
You can download the 614004184726 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 614004184726?
WURTH ELEKTRONIK
