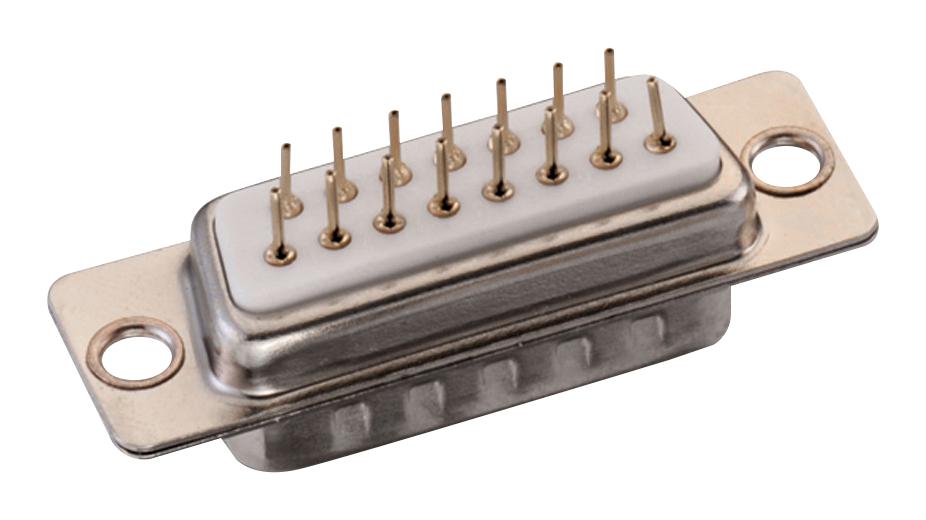

WURTH ELEKTRONIK 61800925023 PCB Connector
This is a PCB connector designed for electronic assemblies requiring reliable connections and high durability. It features gold-plated contacts, a steel shielding material, and a white PBT insulator with UL94 V-0 flammability rating. The connector supports 50 mating cycles, operates within -40°C to +85°C, and handles a rated current of 3 A at 125 VAC. It is suitable for industrial, automation, and control systems, conforming to RoHS standards and engineered for long-lasting performance in demanding electronic applications.
WURTH ELEKTRONIK 61800925023 PCB Connector Specifications:
- Material: Insulator - PBT, Contact - Copper Alloy, Shielding - Steel
- Insulator Flammability Rating: UL94 V-0
- Insulator Color: White
- Contact Plating: Gold
- Rated Current: 3 A
- Working Voltage: 125 VAC
- Withstanding Voltage: 1000 V (AC, 1 min)
- Contact Resistance: 30 mΩ max
- Insulation Resistance: 5000 MΩ min
- Operating Temperature: -40°C to +85°C
- Durability: 50 mating cycles
- Certification: RoHS compliance
- Dimensions: Length L 30.81 mm, Length u 25 mm, Length Lb 16.92 mm
Buy the Wurth Elektronik 61800925023 – Reliable PCB Connector for Industrial Applications
Purchase the Wurth Elektronik PCB connector online today for dependable and efficient electronic connections. Engineered for long-lasting performance, it features gold-plated contacts, steel shielding, and UL94 V-0 rated insulators to ensure safety and durability in industrial, automation, and control systems. Its support for 50 mating cycles and operational temperature range of -40°C to +85°C make it ideal for demanding electronic environments. Order now to enhance your electronic assembly reliability with trusted quality and quick delivery.
Get Wurth Elektronik 61800925023 today—designed for high durability and precision in electronic assemblies.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 61800925023?
You can click on the BUY or RFQ button to purchase 61800925023 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 61800925023?
You can download the 61800925023 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 61800925023?
WURTH ELEKTRONIK
